Description
Product Overview

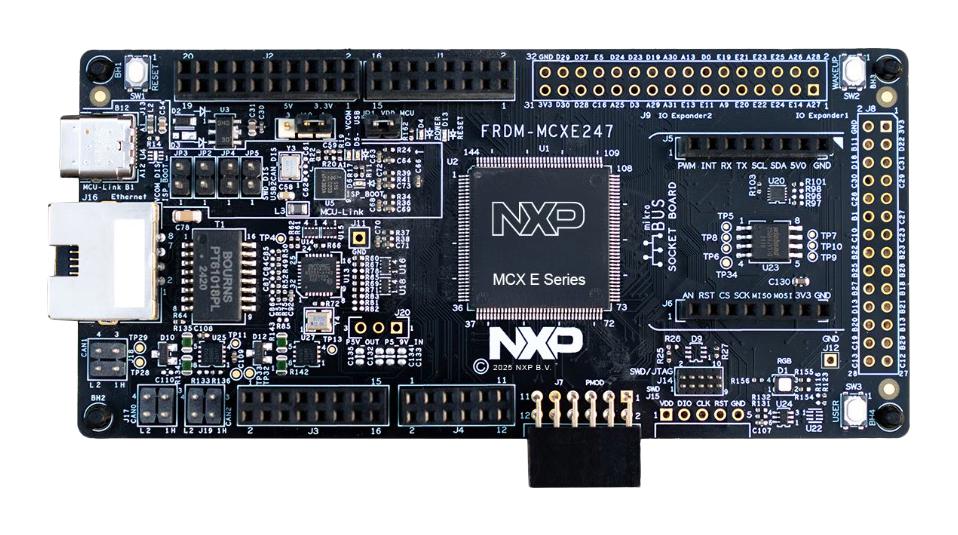

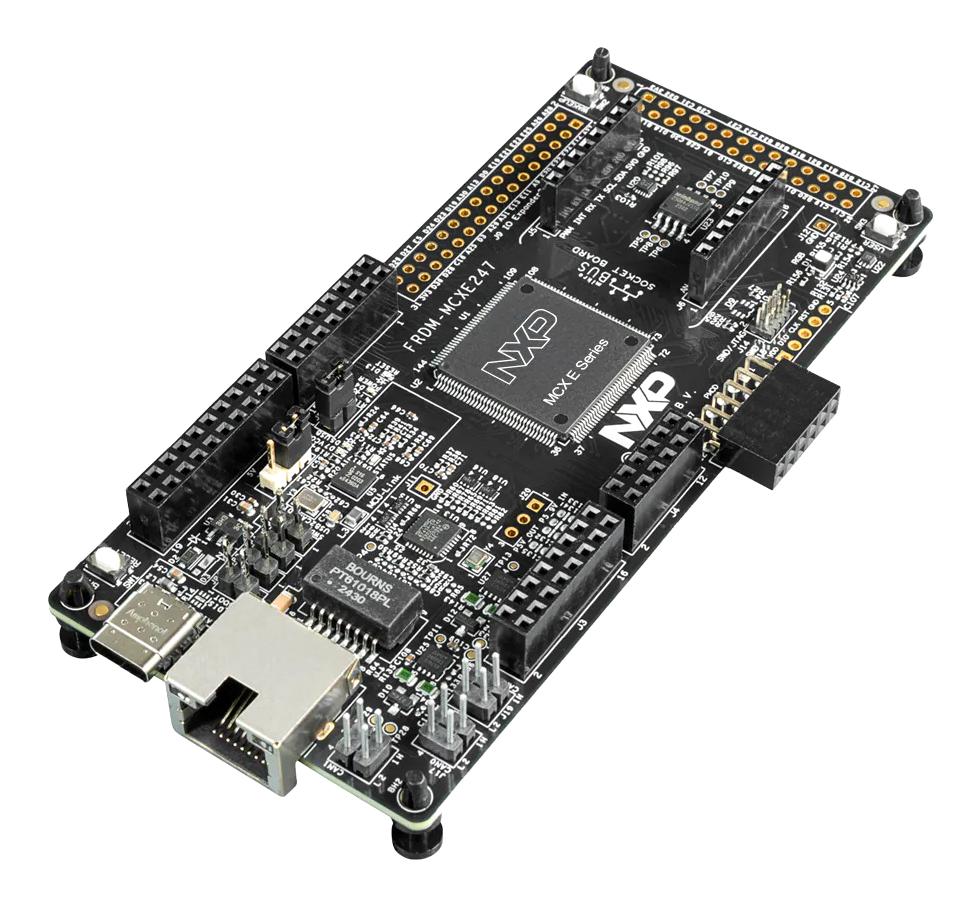

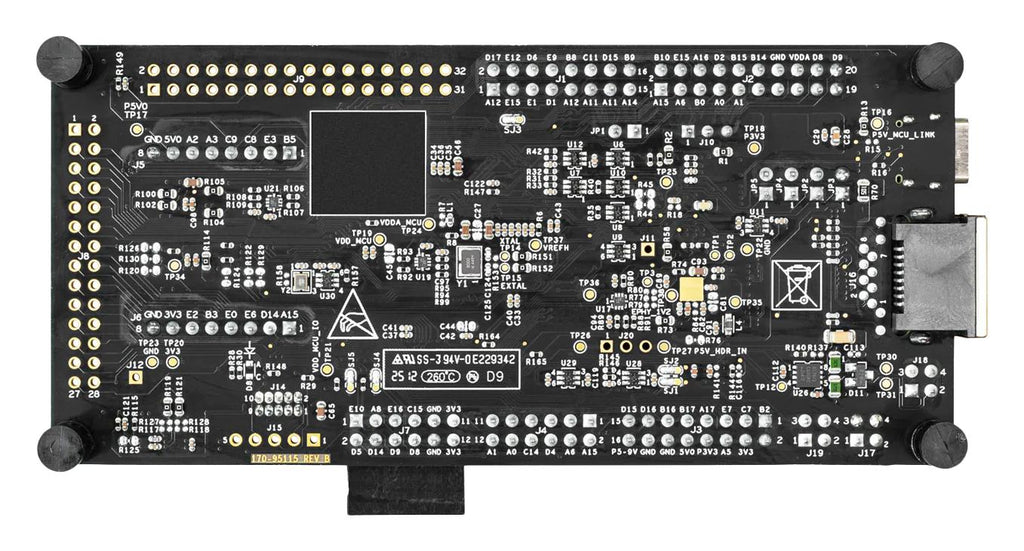

FRDM-MCXE247 is a FRDM development board for MCX E245/246/247 MCUs. It offers industry-standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Suitable for consumer (Air Conditioning (AC), safe appliances, small and medium appliances), Industrial (BLDC control, energy management, Energy Storage System (ESS), heat meter, motor control, Permanent Magnet Synchronous Motor (PMSM)) applications.
- MCX E247 general-purpose 32bit MCU based on Arm Cortex M4F
- Up to 112MHz CPU performance with DSP and FPI support, up to 2MB flash, up to 256kB SRAM
- Connectivity: CAN/I3C/SPI/I²C/UART connector (Arduino, PMOD/mikroBUS, DNP)
- 10/100Mbit/s (RMII) LAN8741 Ethernet PHY and RJ45
- Debug: on-board MCU-Link debugger with CMSIS-DAP and JTAG/SWD connector
- Sensor: FXLS8974CFR3 I²C sensor and magnetic switch NMH1000
- Expansion option: Arduino® & FRDM header, Pmod™ *DNP, mikroBUS™, FlexIO/LCD and FlexIO/camera header
Contents
FRDM-MCXE247, Quick start guide, USB cable Type-C.
Product details
| Silicon Manufacturer | NXP |
| Silicon Family Name | MCXE24x |
| Core Sub-Architecture | Cortex-M4F |
| Kit Contents | FRDM Development Board MCXE247 |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Silicon Core Number | MCXE247 |
| Product Range | - |
Other details
| Brand | NXP |
| Part Number | FRDM-MCXE247 |
| Quantity | Each |
| Technical Data Sheet (2.11MB) EN | View or download |
