Product Overview

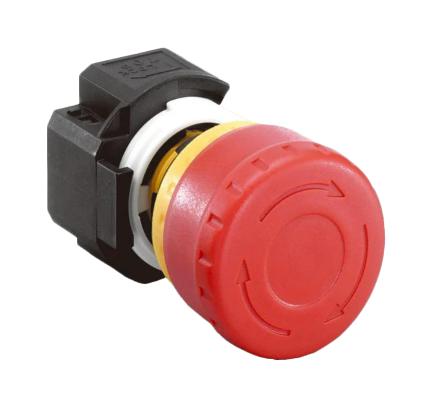

XA1E-BV313R is an XA series non-illuminated, emergency stop switch (w/removable contact block). The original “Safe break action” ensures that the contacts open when the contact block is detached from the operator. Applicable standards include IEC60947-5-1, EN60947-5-1, IEC60947-5-5, EN60947-5-5, JIS C8201-5-1, UL991, NFPA79, UL508, CSA C22.2 No.14, GB14048.5.
- Solder terminal
- 1NO monitor contact, 3NC main contact
- ø29mm mushroom shape
- Dark red operator colour
- Direct opening action mechanism (IEC 60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Degree of protection IP65 (IEC 60529)
- Gold-plated silver contact
- Contact resistance is 50mohm maximum (initial value)
- Insulation resistance is 100Mohm minimum (500V DC megger)
Product details
| Contact Configuration |
SPST-NO, 3PST-NC |
| Switch Terminals |
Solder Lug |
| Contact Voltage AC Nom |
125V |
| Pushbutton Actuator Style |
Mushroom |
| Product Range |
XA Series |
| Switch Operation |
Pushlock Pull/Turn Reset |
| Contact Current Max |
3A |
| Contact Voltage DC Nom |
- |
| IP Rating |
IP65 |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
IDEC |
| Part Number |
XA1E-BV313R |
| Quantity |
Each |
| Technical Data Sheet (133.00B) EN |
View or download |
