Product Overview

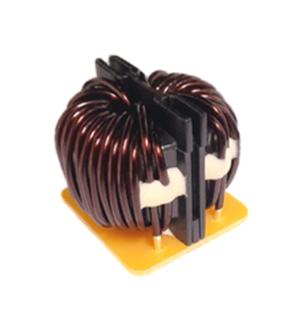

SCF12X-050-0R6A014JV is a SCF12X series common mode choke with a wide variety of characteristics. This toroidal coil is designed with nanocrystalline metal cores and is useful in EMC countermeasures both in consumer and in industrial applications. Typical applications include audio-visual equipment, industrial equipment, home appliances and power supplies.
- Nanocrystalline metal core
- Rated voltage of 250V AC, 320V AC (IEC60664 -1)
- Withstanding voltage of 2,400V AC (2 seconds, between lines)
- Insulation resistance is greater than 100Mohm at 500V DC (between lines)
- Rated current of 5A
- Inductance is 3.5mH minimum at 10kHz and 0.87mH minimum at 100kHz
- 25.4mohm max DC resistance/line, 65K max temperature rise, 0.60mm wire diameter
- Vertical terminals with base, ultra-high inductance, ultra-high permeability
- Operating temperature range from -40°C to +130°C
- UL 94 V–0 flame retardant rated base and cap
Product details
| Inductance |
3.5mH |
| DC Resistance Max |
0.0254ohm |
| Operating Temperature Max |
130°C |
| SVHC |
No SVHC (04-Feb-2026) |
| DC Current Rating |
5A |
| Operating Temperature Min |
-40°C |
| Product Range |
SCF12X Series |
Other details
| Brand |
KEMET |
| Part Number |
SCF12X-050-0R6A014JV |
| Quantity |
Each |
