Product Overview

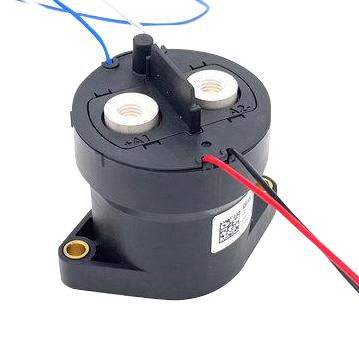

GVB352BAB is a GVB35 series high-voltage DC contactor. The gas-filled design offers lower resistance than non-hermetic switches, resulting in higher system efficiency and less heat generation. The suppression gas allows high fault interrupt capability and prohibits oxidation-strong capability of cooling arc, rapidly breaking current. The built-in coil suppression for all DC coils saves users engineering time and parts cost to add external coil suppression. Applications include DC fast charging, energy storage systems, and battery electric special mobility.
- Not position-sensitive – can be mounted in any position for ease of installation
- CCC, UL 60947-4-1 certified, meets IP67 level
- Side mounting
- 12V DC, internal coil suppression
- Flying leads, 30cm (12in) coil termination
- 0.15mohm typical contact resistance
- 100mohm at 1000V DC insulation resistance
Product details
| Load Current Inductive |
- |
| Operating Voltage |
1kV |
| No. of Poles |
1 Pole |
| Switching Current AC1 |
- |
| Coil Voltage VDC Nom |
12V |
| Load Current Resistive |
500A |
| Product Range |
GVB35 Series |
| Relay Mounting |
Flange |
| Contact Configuration |
SPST-NO-DM |
| Switching Power AC3 |
- |
| Coil Voltage VAC Nom |
- |
| Switching Power AC1 |
- |
| Switching Current AC3 |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
SENSATA / GIGAVAC |
| Part Number |
GVB352BAB |
| Quantity |
Each |
| Technical Data Sheet (451.65KB) EN |
View or download |
