Product Overview

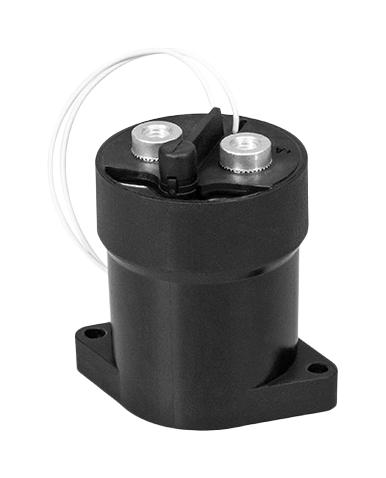

GV352RPXX is a GV35 series contactor. It is a hermetically sealed, gas-filled contactor suitable for use in harsh environments. With contact voltage ratings from 12V DC to 1000V DC and a hot switchable continuous carry current of 500A, the compact GV35 Series is ready to solve your next challenging application problem. The contactor can be mounted in any axis or orientation and is sealed to withstand a variety of harsh environments. The gas-filled design offers lower resistance than non-hermetic switches, resulting in higher system efficiency and less heat generation. Applications include battery electric vehicles, DC fast charging, energy storage systems, DC motor drive protection, and photovoltaic controls.
- Suppression gas allows high fault interrupt capability and prohibits oxidation
- Smaller, lighter, and more efficient than non-hermetic switches
- Side mount, 12/24V DC coil voltage, pins coil termination
- 1,000,000cycles mechanical life
- 0.15mohm typical contact resistance
- 100Mohm insulation resistance
- Environmental seal exceeds IP67 & IP69K
- Operating ambient temperature range from -55 to +85°C
Product details
| Load Current Inductive |
- |
| Operating Voltage |
1kV |
| No. of Poles |
1 Pole |
| Switching Current AC1 |
- |
| Coil Voltage VDC Nom |
24V |
| Load Current Resistive |
500A |
| Product Range |
GV35 Series |
| Relay Mounting |
Flange |
| Contact Configuration |
SPST-NO-DM |
| Switching Power AC3 |
- |
| Coil Voltage VAC Nom |
- |
| Switching Power AC1 |
- |
| Switching Current AC3 |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
SENSATA / GIGAVAC |
| Part Number |
GV352RPXX |
| Quantity |
Each |
| Technical Data Sheet (1.03MB) EN |
View or download |
