Product Overview

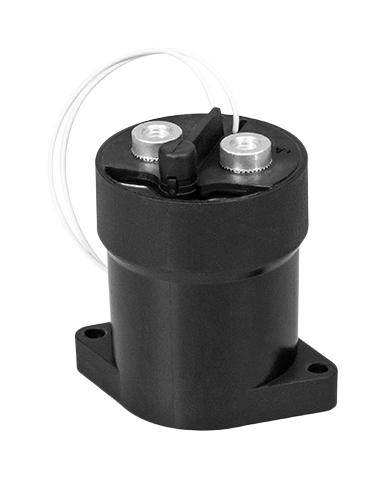

GV241CAX is a GV24 series hermetically sealed contactor. It is designed to meet: UL1604 for Class I & II, Div 2 and Class III for use in hazardous locations, IP67 for temporary water immersion for 30 min, SAE J1171 - external ignition protection, and ISO8846 for protection against ignition around flammable gases. The built-in coil suppression for all DC coils saves users engineering time and parts cost to add external coil suppression.
- Stainless steel hardware and brass mounting inserts, for years of corrosion free service
- Not position sensitive – can be mounted in any position for ease of installation
- Upright mounting, 24V DC, internal coil suppression
- Flying leads 38cm (15inch) coil termination
- 1,000,000cycles mechanical life
- 0.3mohm typical contact resistance
- 100Mohm insulation resistance
- Operating ambient temperature range from -55°C to +85°C
- Environmental seal exceeds IP67 & IP69K
Product details
| Load Current Inductive |
- |
| Operating Voltage |
800VDC |
| No. of Poles |
1 Pole |
| Switching Current AC1 |
- |
| Coil Voltage VDC Nom |
24V |
| Load Current Resistive |
400A |
| Product Range |
GV24 Series |
| Relay Mounting |
Flange |
| Contact Configuration |
SPST-NO-DM |
| Switching Power AC3 |
- |
| Coil Voltage VAC Nom |
- |
| Switching Power AC1 |
- |
| Switching Current AC3 |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
SENSATA / GIGAVAC |
| Part Number |
GV241CAX |
| Quantity |
Each |
| Technical Data Sheet (501.68KB) EN |
View or download |
