Product Overview

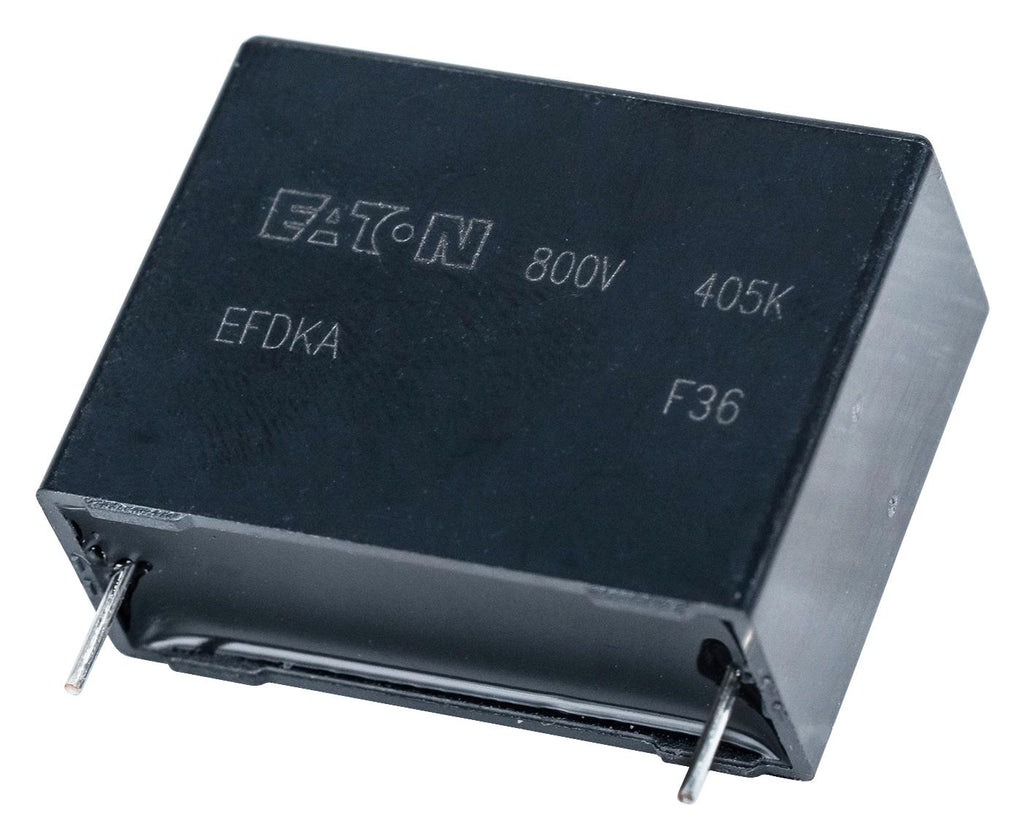

EATON ELECTRONICS EFDKA60K137F064DHT Power Film Capacitor, Metallized PP, Radial Box - 4 Pin, 130 µF, ± 10%, DC Link, High Frequency
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
130µF |
| Typical Applications |
DC Link, High Frequency |
| Voltage(AC) |
- |
| Humidity Rating |
GRADE III (Test Condition B) |
| Lead Spacing |
52.5mm |
| Peak Current |
2.6kA |
| ESR |
2500µohm |
| Product Length |
57.5mm |
| Product Height |
65mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
600V |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
20V/µs |
| RMS Current (Irms) |
39.4A |
| Product Diameter |
- |
| Product Width |
45mm |
| Ripple Current |
- |
| Product Range |
EFDKA-T Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
EATON ELECTRONICS |
| Part Number |
EFDKA60K137F064DHT |
| Quantity |
Each |
| Technical Data Sheet (441.97KB) EN |
View or download |
