Product Overview

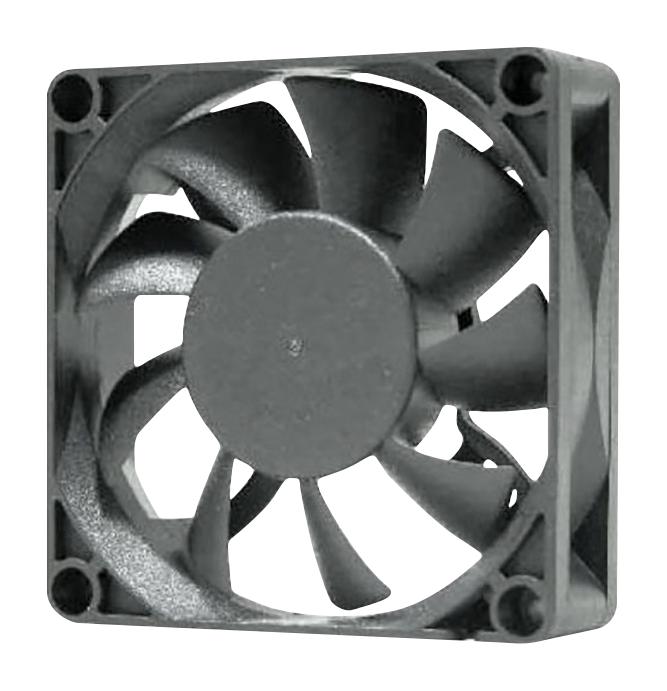

ORION FANS OD7025-24HHB DC Axial Fan, 24 V, Square, 70 mm, 25 mm, Ball Bearing, 48 CFM
Product details
| Supply Voltage VDC |
24V |
| Fan Frame Size |
70mm |
| Bearing Type |
Ball Bearing |
| Noise Rating |
47.5dBA |
| Rated Speed |
5000rpm |
| Current Rating |
260mA |
| Air Flow - m3/min |
- |
| Product Range |
OD7025 Series |
| Fan Frame Type |
Square |
| External Depth |
25mm |
| Air Flow - CFM |
48CFM |
| Power Rating |
6.24W |
| Power Connection Type |
2 Lead Wires |
| IP Rating |
- |
| Static Pressure |
0.32Inch-H2O |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
ORION FANS |
| Part Number |
OD7025-24HHB |
| Quantity |
Each |
| Technical Data Sheet (55.00B) EN |
View or download |
