Product Overview

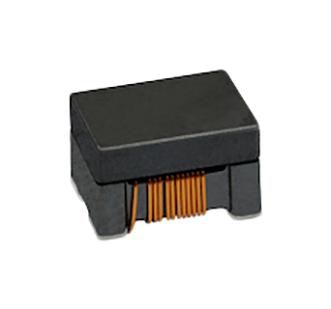

VISHAY ICM1812ER801V Common Mode Choke, 800 ohm, 1A, 4.5mm x 3.2mm x 2.8mm, 1812 [4532 Metric]
Product details
| DC Current Rating |
1A |
| DC Resistance Max |
0.24ohm |
| Impedance |
800ohm |
| Product Length |
4.5mm |
| Product Height |
2.8mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Inductance |
- |
| Product Range |
ICM1812 Series |
| Inductor Case / Package |
1812 [4532 Metric] |
| Product Width |
3.2mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
VISHAY |
| Part Number |
ICM1812ER801V |
| Quantity |
Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
