Product Overview

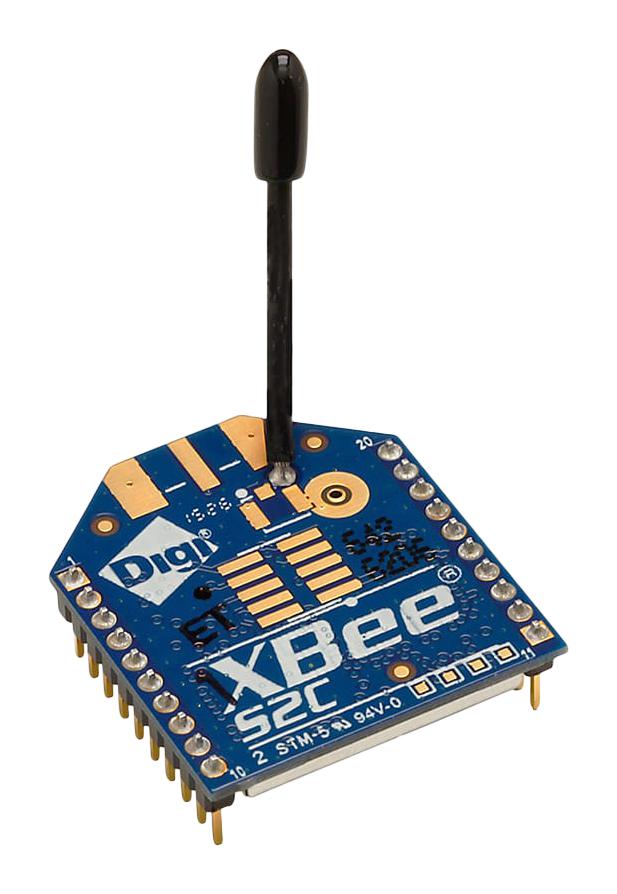

XB24CZ7WITB003 is a Programmable Digi XBee ZigBee module that provides OEMs with a simple way to integrate mesh technology into their application. It provides cost-effective wireless connectivity to electronic devices. This module is ideal for applications in the energy and controls markets where manufacturing efficiencies are critical. The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes integration with embedded microcontrollers, lowering development costs and reducing time to market.
- Through-hole form factors enable flexible design options and wire antenna
- Programmable versions with on-board microprocessor enable custom Zigbee application development
- Industry-leading sleep current
- API or AT commands, local or over-the-air (OTA) configuration method
- UART, SPI serial data interface
- RF 250Kbps, serial up to 1Mbps data rate
- ISM 2.4GHz frequency band
- DSSS (Direct Sequence Spread Spectrum) interference immunity
- (4) 10-bit ADC inputs and 15 digital I/O
- Operating temperature range from -40 to 85°C
Product details
| RF Modulation |
DSSS |
| Frequency Max |
2.4GHz |
| Supply Voltage Min |
2.1V |
| Module Interface |
SPI, UART |
| Product Range |
XBee Series |
| Data Rate Max |
250Kbps |
| Sensitivity dBm |
-102dBm |
| Supply Voltage Max |
3.6V |
| Supply Current |
45mA |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
DIGI INTERNATIONAL |
| Part Number |
XB24CZ7WITB003 |
| Quantity |
Each |
| Technical Data Sheet (351.85KB) EN |
View or download |
