DIGI INTERNATIONAL XB3-24DMUM Zigbee Module, 250 Kbps, 2.4 GHz Frequency, I2C, SPI, UART, 2.1 to 3.6V Sup, XBee 3 PRO Series

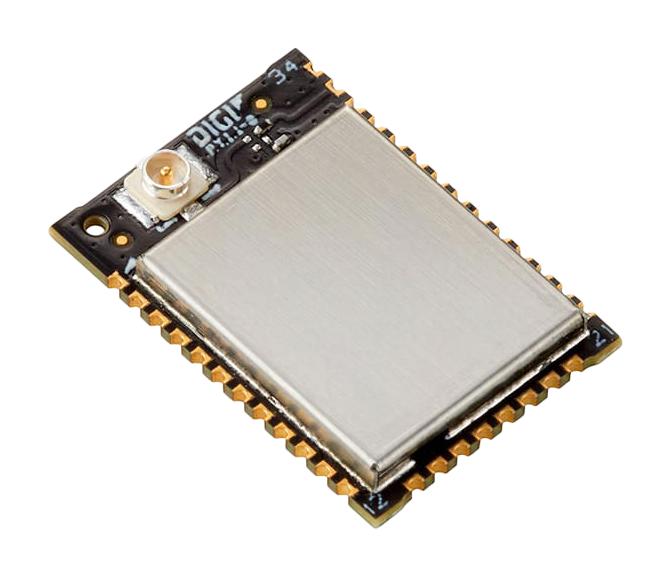

XB3-24DMUM is a 2.4GHz Digi XBee DigiMesh® 3 PRO module with U.FL antenna in MMT form factor. The This module accelerates time to market for designers, OEMs and solution providers by enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed. This module uses DigiMesh® networking protocol using a globally deployable 2.4GHz transceiver. This peer-to-peer mesh network offers users added network stability through self-healing, dense network operation, extending the operational life of battery dependent networks and provides an upgrade path to IEEE 802.15.4 or Zigbee mesh protocols, if desired. With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from central platform. Built-in Digi TrustFence® security, identity and data privacy (protect against new and evolving cyber threats).

• RF 250Kbps, serial up to 1Mbps date rate and Up to 90m (300ft) indoor/urban range
• 3200m outdoor/RF line-of-sight range, 19dBm transmit power, -103dBm normal mode receiver sensitivity
• UART, SPI, I2C serial data rate and API or AT commands, local or OTA configuration method
• DSSS interference immunity and (4) 10bit ADC inputs, 15 digital I/O
• 1MB/128KB RAM memory and CPU/clock speed is HCS08 /up to 50.33MHz
• 802.15.4 protocol, 128/256 bit AES encryption
• 2.1 to 3.6V supply voltage, 135mA at 19dBm transmit current, 17mA receive current
• MicroPython and Digi XCTU® software tools simplify adding functionality, configuration and testing
• Operating temperature range from -40°C to 85°C (-40°F to 185°F)
• Dimension (L X W X H) micro: 13 x 19 x 2mm (0.533 x 0.76 x 0.087in)
