Product Overview

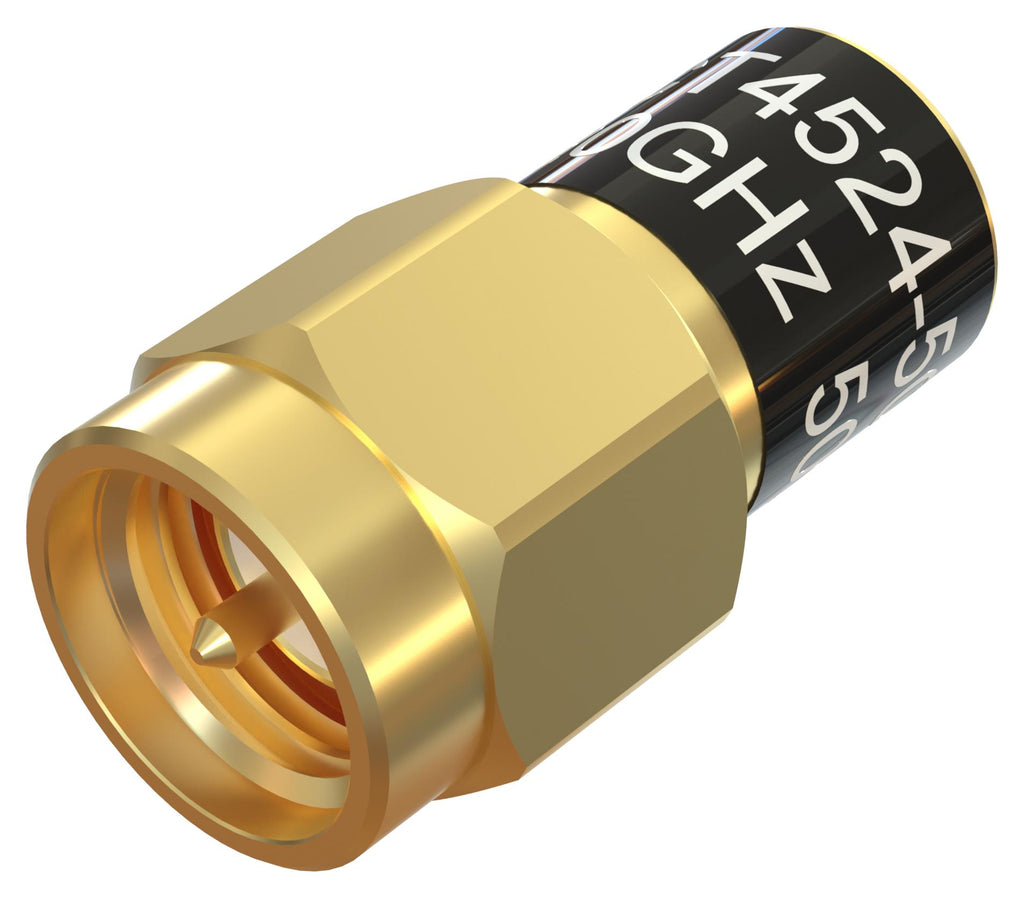

CT4524-50 is a SMA male terminator designed for operation from DC to 20GHz frequency with 1W power rating and a low VSWR of 1:20:1 across the entire frequency range. This terminator’s 50 ohm impedance minimizes signal reflections and ensuring optimal signal integrity. Built with a gold-plated brass body, gold-plated centre contact, PTFE dielectric, and silicone rubber gasket, the CT4524-50 is ideal for laboratory instrumentation, RF testing, communications systems, and various measurement applications.
- Low VSWR for accurate measurements
- Brass, gold plated centre contact
- Brass, gold plated centre contact
- PTFE dielectric
- Red silicone rubber gasket
- One-year warranty
- Temperature range from 0°C to +125°C
Product details
| RF / Coaxial Termination Type |
SMA Terminator Plug |
| Impedance |
50ohm |
| SVHC |
No SVHC (21-Jan-2025) |
| Frequency Max |
20GHz |
| Product Range |
- |
Other details
| Brand |
CAL TEST ELECTRONICS |
| Part Number |
CT4524-50 |
| Quantity |
Each |
| Technical Data Sheet (211.18KB) EN |
View or download |
