Product Overview

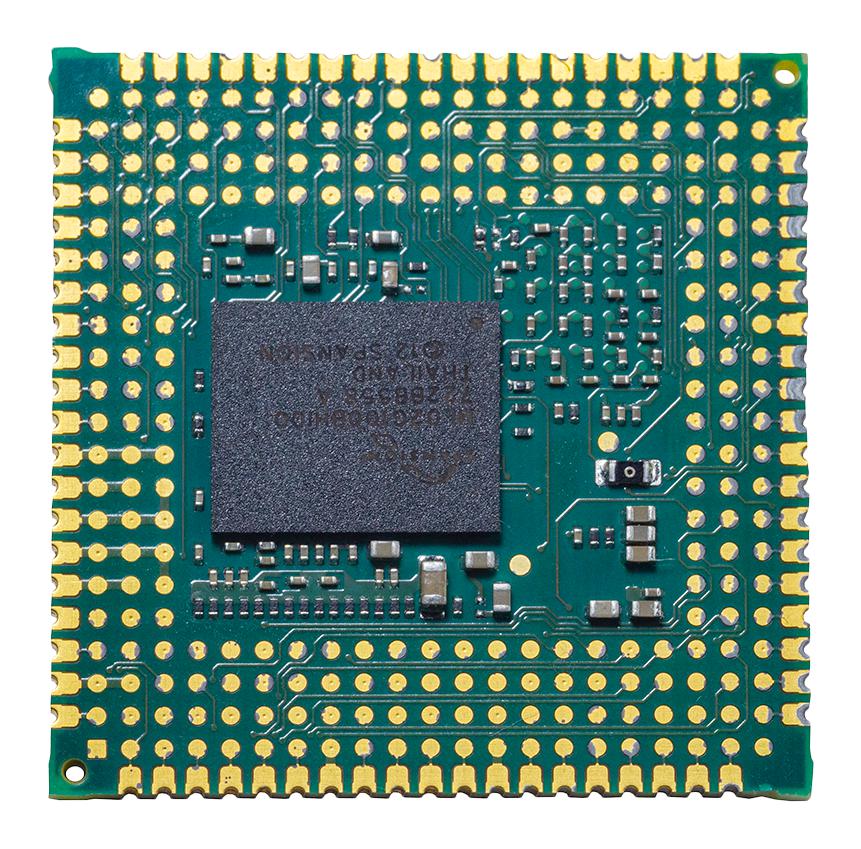

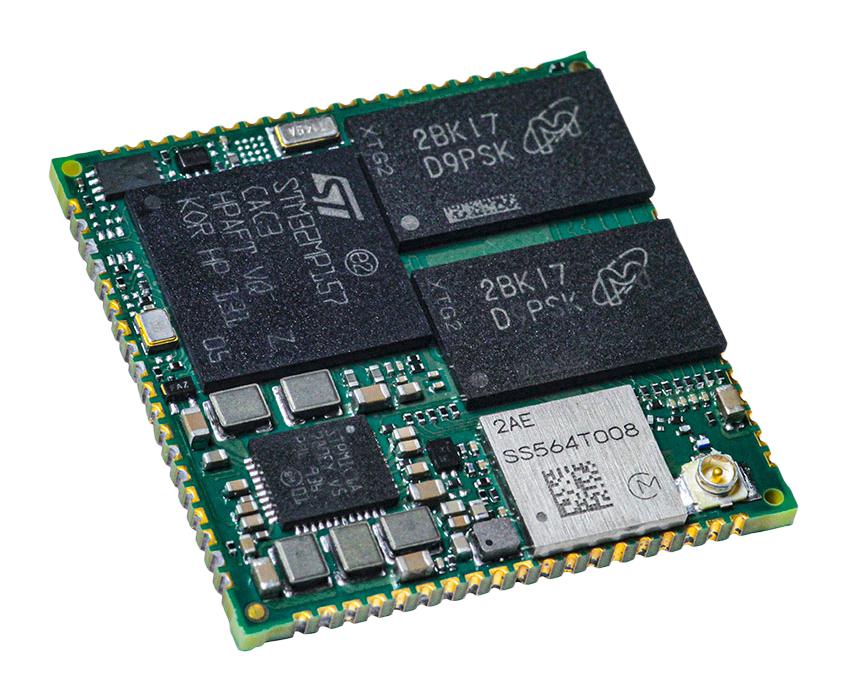

CC-WST-DW69-NM is a Digi ConnectCore MP157 Secure Wi-Fi 5, Bluetooth 5.2 System-On-Module (SOM). This intelligent, wireless and secure embedded SOM family based on the STM32MP1 MPU with turnkey Linux support in the Digi SMTplus standard form factor. The scalable Digi ConnectCore MP1 module family provides ideal options for headless gateway products with rich connectivity requirements and display devices with advanced HMIs powered by a 3D graphics processing unit (GPU) and camera support. Digi ConnectCore MP1 system-on-modules are designed for industrial and medical use with high levels of security, reliability, performance and 10+ year longevity.
- STM32MP157C, Arm® dual Cortex®-A7 at 650MHz, Cortex-M4 at 209MHz, FPU/MPU, 3D GPU
- Secure boot, crypto engine
- Memory: up at 1GB SLC NAND flash, up to 1GB DDR3L and STPMIC1 power management IC
- Temperature of -40°C to 85°C (-40°F to 185°F); depending on use case and enclosure/system design
- Wi-Fi 5 dual-band 802.11a/b/g/n/ac 1x1 radio with strong WPA3-Enterprise authentication/encryption
- Bluetooth 5.2 (Basic Rate, Enhanced Data Rate and Bluetooth Low Energy)
- Interfaces/peripherals: 6x I2C, 4x UART + 4x USART, 6x SPI (3 with full duplex I2S), 4x SAI
- Relative humidity range from 5% to 90% (non-condensing)
- Digi TrustFence embedded security framework
- Mechanical dimension is 29 x 29 x 3mm (1.14 x 1.14 x 0.12in) and 3 year product warranty
Product details
| Frequency RF |
650MHz |
| Module Applications |
Industrial-Grade, Scalable, Embedded SOM Platform, Power Management |
| SVHC |
No SVHC (21-Jan-2025) |
| Module Interface |
ADC/DAC, CAN FD, HDMI, I2C, I2S, PDM, SPI, SAI, SPDIF, SDMMC, UART, USB, USART |
| Product Range |
ConnectCore MP157 Series |
Other details
| Brand |
DIGI INTERNATIONAL |
| Part Number |
CC-WST-DW69-NM |
| Quantity |
Each |
| Product Change Notice (286.33KB) EN |
View or download |
| Technical Data Sheet (1.11MB) EN |
View or download |
