Product Overview

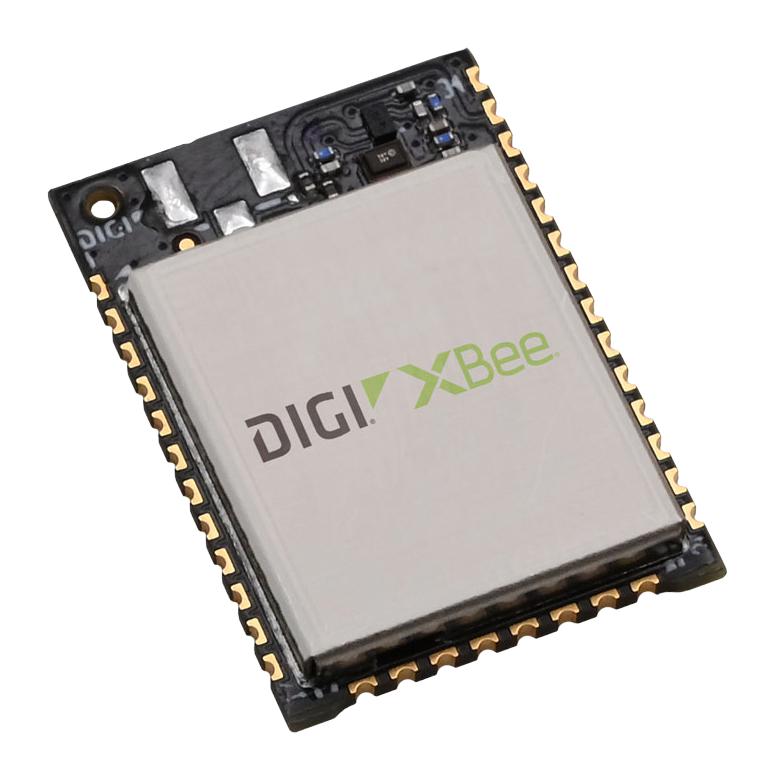

XB-8XR-DMRM-101 is a Digi XBee® XR 868 module. This is a compact and reliable solution supporting deployment of long-range connectivity applications in the European region. The module enables both point-to-point and mesh networking protocols, with a line-of-sight range of over 14Km, and compatibility with the SX protocol. It is well suited for agriculture and energy applications where long-distance communication is required.
- Digi XBee XR 868MHz, DigiMesh, RF pad, MMT
- Low-power CE/RED certified 868MHz RF module based on Silicon Labs EFR32 microcontroller
- Design includes SAW filter for optimal performance in noisy RF environments
- Listen-before-talk and frequency agility for optimal interference immunity
- DigiMesh® networking topology for redundancy and reliability
- Simple configuration using Digi XBee Studio accelerates time to market
- UART data rate up to 921.6kbps and SPI data rate up to 5Mbps
- Supply voltage range from 2.1 to 3.6V DC
- 76mA transmit current
- 26mA receive current and 1.5µA sleep current
Product details
| Zigbee Protocol |
SX |
| Supply Voltage Range |
2.1 VDC to 3.6 VDC |
| Product Range |
XBee Series |
| Interfaces |
SPI, UART |
| Operating Temperature Range |
-40 °C to 85 °C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
DIGI INTERNATIONAL |
| Part Number |
XB-8XR-DMRM-101 |
| Quantity |
Each |
