Product Overview

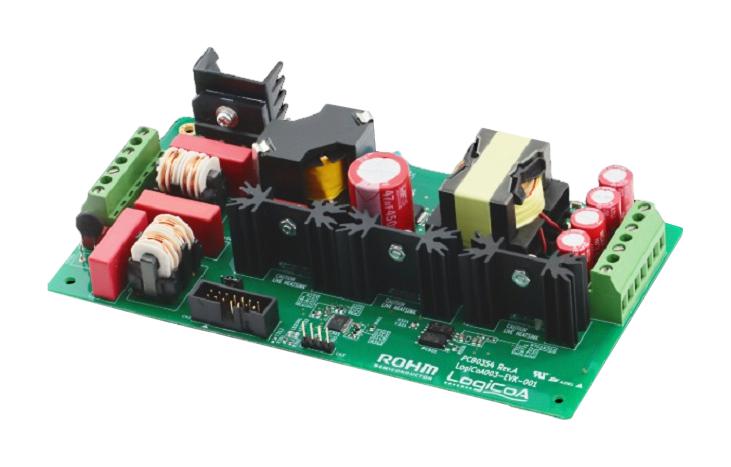

LOGICOA003-EVK-001 is a boundary conduction mode PFC and quasi-resonant flyback converter with analogue-digital hybrid control evaluation board. The LogiCoA003-EVK-001 is equipped with a remote control (RC) function. By preparing a remote control circuit, the ON/OFF state of the output can be controlled while applying the input voltage. The remote control circuit is isolated from the input and output. When the input voltage is above the startup voltage, the output will be ON by default when the voltage VRC specified in Table 6-3 is applied between RCP and RCM from an external power source. When the output is OFF, the circuit operation of the QR flyback converter stops, and the system transitions from normal operation mode to a low-power mode that reduces the microcontroller's power consumption.
- Board size is 170mm x 90mm x 1.6mm
- 2 layers
- FR-4 (~125°C) material
- 2oz (70μm) copper thickness
Product details
| Silicon Manufacturer |
Rohm Semiconductor |
| Kit Application Type |
Power Management |
| Core Architecture |
RISC |
| Silicon Family Name |
ML62Q20xx |
| Product Range |
- |
| Silicon Core Number |
ML62Q2035 |
| Application Sub Type |
PFC and Quasi-Resonant Flyback Converter |
| Core Sub-Architecture |
- |
| Kit Contents |
Evaluation Board ML62Q2035 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
ROHM |
| Part Number |
LOGICOA003-EVK-001 |
| Quantity |
Each |
| Technical Data Sheet (2.75MB) EN |
View or download |
