Product Overview

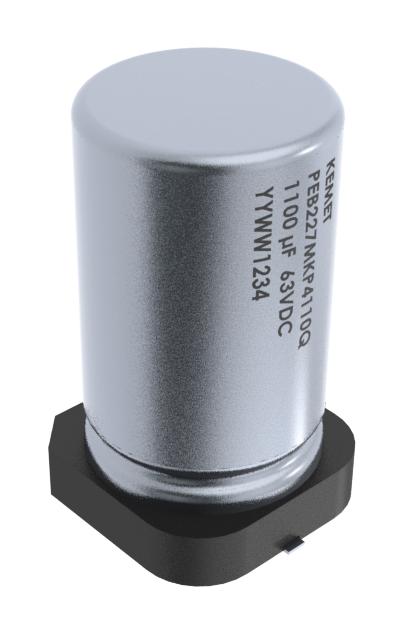

PEB227MLL4110QE4 is a PEB227 series ultra-high CV surface-mount electrolytic capacitor with outstanding electrical performance and high energy storage capability. The device has a polarized all-welded design, tinned copper wire leads, and a negative pole connected to the case. The PEB227's winding is housed in a cylindrical aluminium can with a high purity aluminium lid and high quality rubber gasket. Low ESR is the result of a low resistive electrolyte/ paper system and an all-welded design. Thanks to its mechanical robustness, the PEB227 is suitable for use in mobile and aircraft installations, with operation up to +150°C.
- 1100µF capacitance with -10%, +30% tolerance
- 0.077ohm ESR
- AEC–Q200 automotive qualified
- Extremely high ripple current of 15.2A
- Rated voltage of 63V
- 8400 hours at 125°C
- Operating temperature range from -40°C to 125°C
Product details
| Capacitor Case / Package |
Radial Can - SMD |
| Voltage(DC) |
63V |
| Lifetime @ Temperature |
8400 hours @ 125°C |
| Product Range |
PEB227 Series |
| Capacitor Terminals |
Solder |
| Product Length |
- |
| Product Height |
28.9mm |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q200 |
| Capacitance |
1100µF |
| ESR |
0.077ohm |
| Polarity |
Polar |
| Capacitance Tolerance |
-10%, +30% |
| Product Diameter |
- |
| Product Width |
19mm |
| Ripple Current |
15.2A |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
