Product Overview

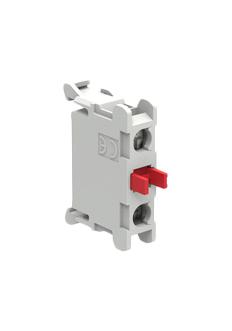

LPXCB01 is a PLatinum LPXCB Series, Ø22mm, contact element without mounting adapter. It can be base mounted on LPZ control stations. It is used as an accessory for Lovato pushbutton and selector switch bodies in the LPC LPS and LPF series.
- Rated insulation voltage Ui IEC/EN is 690V
- IEC conventional free air thermal current Ith less than equal to 40°C is 10A
- SPST-NC configuration and screw termination
- 6A max operating current at 240V (AC15) and 1.5A max operating current at 48V (DC13)
- Electrical life of 1000000cycles
- Contact resistance is less than or equal to 20mohm
- 14AWG/kcmil max conductor section
- Operating temperature range from -25 to 70°C
- Certificates: CCC, cULus, EAC, RINA and UL
- ETIM 8.0 EC000041 - auxiliary contact block
Product details
| Switch Terminals |
Screw |
| Contact Current Max |
6A |
| For Use With |
Lovato PLatinum LPZ Series Control Stations |
| Product Range |
PLatinum LPXCB Series |
| No. of Poles |
1 Pole |
| Contact Voltage AC Max |
240V |
| Contact Voltage DC Max |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
LOVATO ELECTRIC |
| Part Number |
LPXCB01 |
| Quantity |
Each |
| Technical Data Sheet (85.00B) EN |
View or download |
