Product Overview

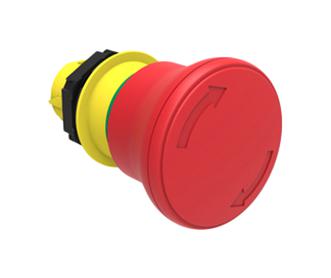

LPCB6644 is a PLatinum chromed plastic Ø22mm series, 40mm Ø mushroom head pushbutton actuator.
- Red colour actuator
- Latching mechanism: turn to release
- Type of stopping for mushroom head: ISO13850 Emergency
- Polyamide material
- IEC degree of protection: IP66, IP67 and IP69K
- Operating force is less than 0.5Kg/1.1Ib and operating temperature range from -25 to 70°C
- Mechanical life: 300000cycles (latch actuators)
- UL degree of protection: Type1, 2, 3R, 4, 4X, 12, 12K
- Certificates: CCC, cULus, EAC, RINA and UL
- ETIM 8.0 EC001038 - front element for mushroom pushbutton
Product details
| For Use With |
Lovato PLatinum Series 22mm Mushroom Head Emergency Switches |
| Product Range |
PLatinum LPCB664 Series |
| IP / NEMA Rating |
IP66, IP67, IP69K |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
LOVATO ELECTRIC |
| Part Number |
LPCB6644 |
| Quantity |
Each |
| Technical Data Sheet (86.00B) EN |
View or download |
