Product Overview

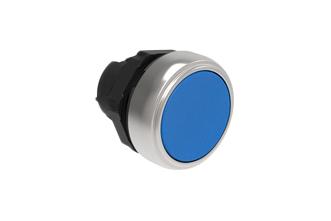

LPCB106 is a PLatinum chromed plastic Ø22mm series, pushbutton actuator with spring return (momentary) mechanism.
- Blue colour flush actuator
- Polyamide material
- IEC degree of protection: IP66, IP67 and IP69K
- Operating force is less than 0.5Kg/1.1Ib
- Mechanical life: 5000000cycles
- UL degree of protection: Type1, 2, 3R, 4, 4X, 12, 12K
- Operating temperature range from -25 to 70°C
- Certificates: CCC, cULus, EAC and RINA
- ETIM 8.0 EC000221 - front element for push button
Product details
| For Use With |
Lovato PLatinum Series 22mm Pushbutton Switches |
| Product Range |
PLatinum LPCB10 Series |
| IP / NEMA Rating |
IP66, IP67, IP69K |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
LOVATO ELECTRIC |
| Part Number |
LPCB106 |
| Quantity |
Each |
| Technical Data Sheet (85.00B) EN |
View or download |
