Product Overview
Also known as
SP006133742, IMZA120R026M2H
Product details
| MOSFET Module Configuration |
Single |
| Continuous Drain Current Id |
69A |
| Drain Source On State Resistance |
0.034ohm |
| No. of Pins |
4Pins |
| Gate Source Threshold Voltage Max |
5.1V |
| Operating Temperature Max |
150°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Channel Type |
N Channel |
| Drain Source Voltage Vds |
1.2kV |

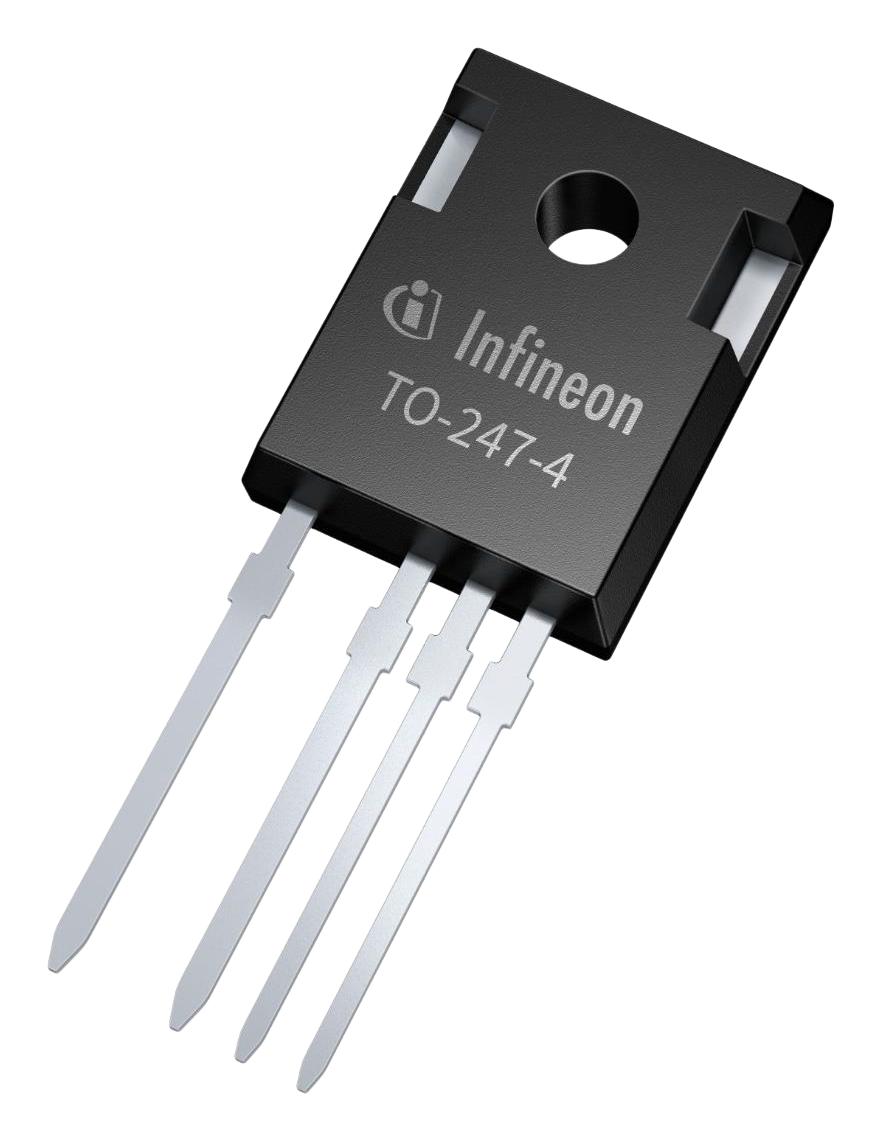

| Transistor Case Style |
TO-247 |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
289W |
| Product Range |
CoolSiC Series |
Other details
| Brand |
INFINEON |
| Part Number |
IMZA120R026M2HXKSA1 |
| Quantity |
Each |
| Technical Data Sheet (117.00B) EN |
View or download |
