Product Overview

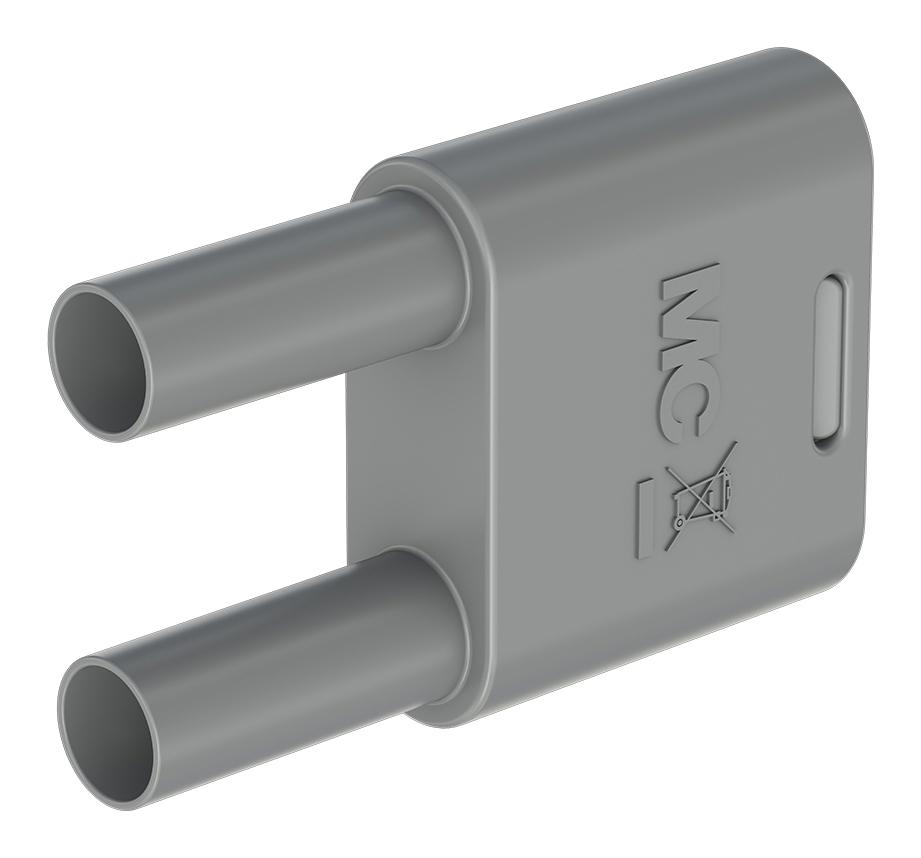

66.4010-28 is an insulated, Ø4mm connecting plug with spring-loaded MULTILAM contact technology and rigid insulating sleeves. At rear with two in-line Ø4mm rigid sockets accepting spring-loaded Ø4mm plugs.
- Rated voltage/current is 1000V, CAT II/32A
- 19mm plug spacing
- Grey colour
- Made of brass
- With insulated grip
- Nickel plated contact
Product details
| Gender |
Plug |
| Current Rating |
32A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass |
| Product Range |
SKS2-4N-19 Series |
| Connector Mounting |
Cable Mount |
| Voltage Rating |
1kV |
| Connector Colour |
Red |
| Contact Termination Type |
- |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
STAUBLI |
| Part Number |
66.4010-28 |
| Quantity |
Each |
| Technical Data Sheet (244.21KB) EN |
View or download |
