Product Overview

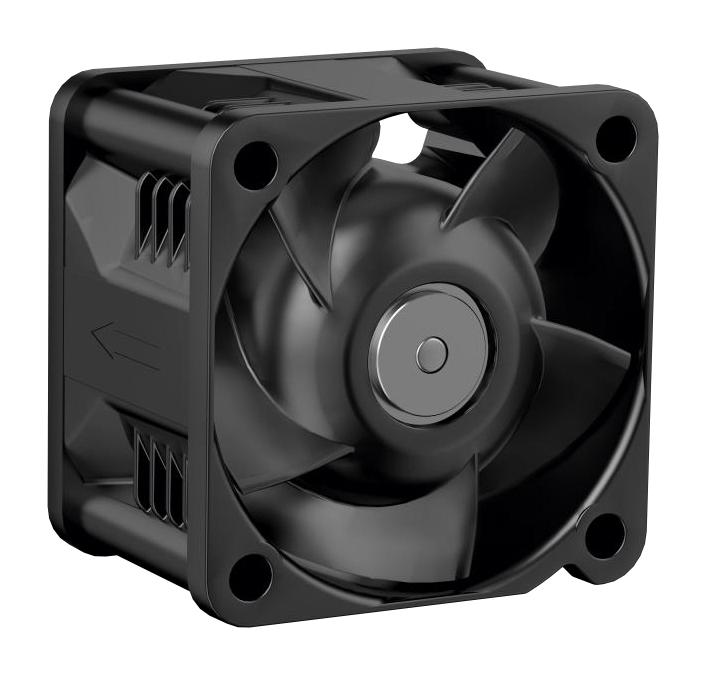

8315100475 is an AxiForce 40 axial fan. It delivers outstanding cooling performance in the smallest of spaces. This makes it the ideal solution for a wide range of indoor and outdoor applications. Applications include telecommunications technology, network technology, industrial control cabinets, server cooling and applications in the renewable energy sector such as inverters, charging stations and battery storage systems.
- 0.4m³/min airflow
- 12V DC nominal voltage
- 44dB(A) sound pressure
- 12,000rpm speed
- IP20 rated
- Temperature range from –20 to +70°C
- Ball bearing
- Motor concept with optimized noise level and efficiency, power electronics with optimized efficiency
- Clockwise rotation facing the rotor
- Plastic (PBT) housing, plastic (PA) impeller
Product details
| Supply Voltage VDC |
12V |
| Fan Frame Size |
40mm |
| Bearing Type |
Ball Bearing |
| Noise Rating |
44dBA |
| Rated Speed |
12000rpm |
| Current Rating |
240mA |
| Air Flow - m3/min |
0.4m³/min |
| Product Range |
AxiForce Series |
| Fan Frame Type |
Square |
| External Depth |
28mm |
| Air Flow - CFM |
14CFM |
| Power Rating |
2.8W |
| Power Connection Type |
2 Lead Wires |
| IP Rating |
IP20 |
| Static Pressure |
305Pa |
| SVHC |
No SVHC (21-Jan-2025) |
