Product Overview

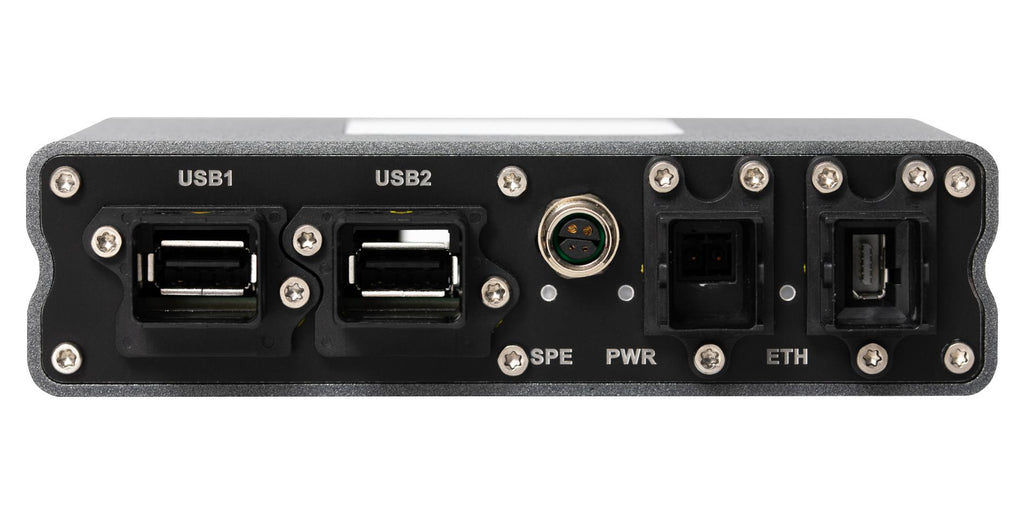

PRN.000.025.00013 is a dual core, 100Base-TX, 100BASE-T1, USB, IP20 periMICA modular edge computer for field-level IOT application, even in rough environments. The periMICA Edge Computer can be configured with the following hardware modules: Processor modules (P), Supply modules (S), Function modules (F). It hosts virtualized applications and provides a runtime for lightweight Linux-containers. Just as you would in the cloud, the periMlCA allows you to set up applications locally. So, migration of applications between the field and your IT infrastructure becomes easy. A periMICA is the Perfect tool for gathering and preprocessing data: Straight from the field-level, where sensors and actuators are networked by the Perinet Smart Components.
- Cortex A9, ARMv7 1.33GHz dual core, 2GB RAM, 16GB eMMC
- Brand labelling supported, user-friendly web-based UI and IOT native: IPv6, Secure by design (mTLS)
- Various Ethernet options: Fast Ethernet (IOOBASE-TX) and single Pair Ethernet (IOOBASE-TI)
- RESTfuI API, open source software and customizable hard- & software
- Containerized S/W (LXC): MQTT broker, Dashboard editor, PK12GO, user-friendly security
- Containerized S/W (LXC): MODBUS-TCP bridge, JTAG debug container
- Aluminium housing material
- LEDs to indicate the operating status
- Operation temperature range from -25 to +75°C and relative humidity is 5 to 95% non-condensing
- Dimension is 132mm x 35mm x 86mm
Product details
| Processor Core Type |
ARM Cortex A9, ARMv7 Dual Core |
| Silicon Family Name |
- |
| RAM Memory Size |
2GB |
| Interfaces |
USB |
| Operating Temperature Range |
-25°C to +75°C |
| SVHC |
No SVHC (21-Jan-2025) |
| Core Number |
Armada 385 |
| Processor Speed |
1.33GHz |
| Kit Contents |
Open Modular Edge Computer |
| Operating System |
Linux |
| Fanless |
- |
Other details
| Brand |
PERINET |
| Part Number |
PRN.000.025.00013 |
| Quantity |
Each |
| Technical Data Sheet (376.72KB) EN |
View or download |
