Product Overview
RSLSD048D001IN1 is a RSLS series plug-in/PCB mount solid state relay with an ultra-slim width of 5mm ideally suited for compact spaces in control cabinets and for high-density PCB applications. The relay is held in place or released by a lever mechanism that prevents disconnection of the socket wiring during maintenance.
- Black PA66 (UL94 V0) material
- Polyurethane based resin (UL 94 V0) potting compound
- IP20 touch protection and III overvoltage category
- Rated output voltage: 48V DC (1 - 48V DC) and 60V DC blocking voltage
- Control voltage: 24V DC (15 - 30V DC)
- 100mA DC max rated current
- DC switching
- Wear-free, long service life
- Fast switching response for precise control and resistant to vibration and shock
- Pre-assembled in screw terminal socket, 6-24V DC input
Product details
| Contact Configuration |
SPST-NO |
| Operating Voltage Max |
48VDC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
1VDC |
| Control Voltage Max |
24VDC |
| SVHC |
No SVHC (21-Jan-2025) |
| Load Current |
100mA |
| Relay Mounting |
DIN Rail |
| Switching Mode |
DC Switch |
| Control Voltage Min |
15VDC |
| Product Range |
RSLS Series |
Other details
| Brand |
CARLO GAVAZZI |
| Part Number |
RSLSD048D001IN1 |
| Quantity |
Each |
| Technical Data Sheet (81.00B) EN |
View or download |

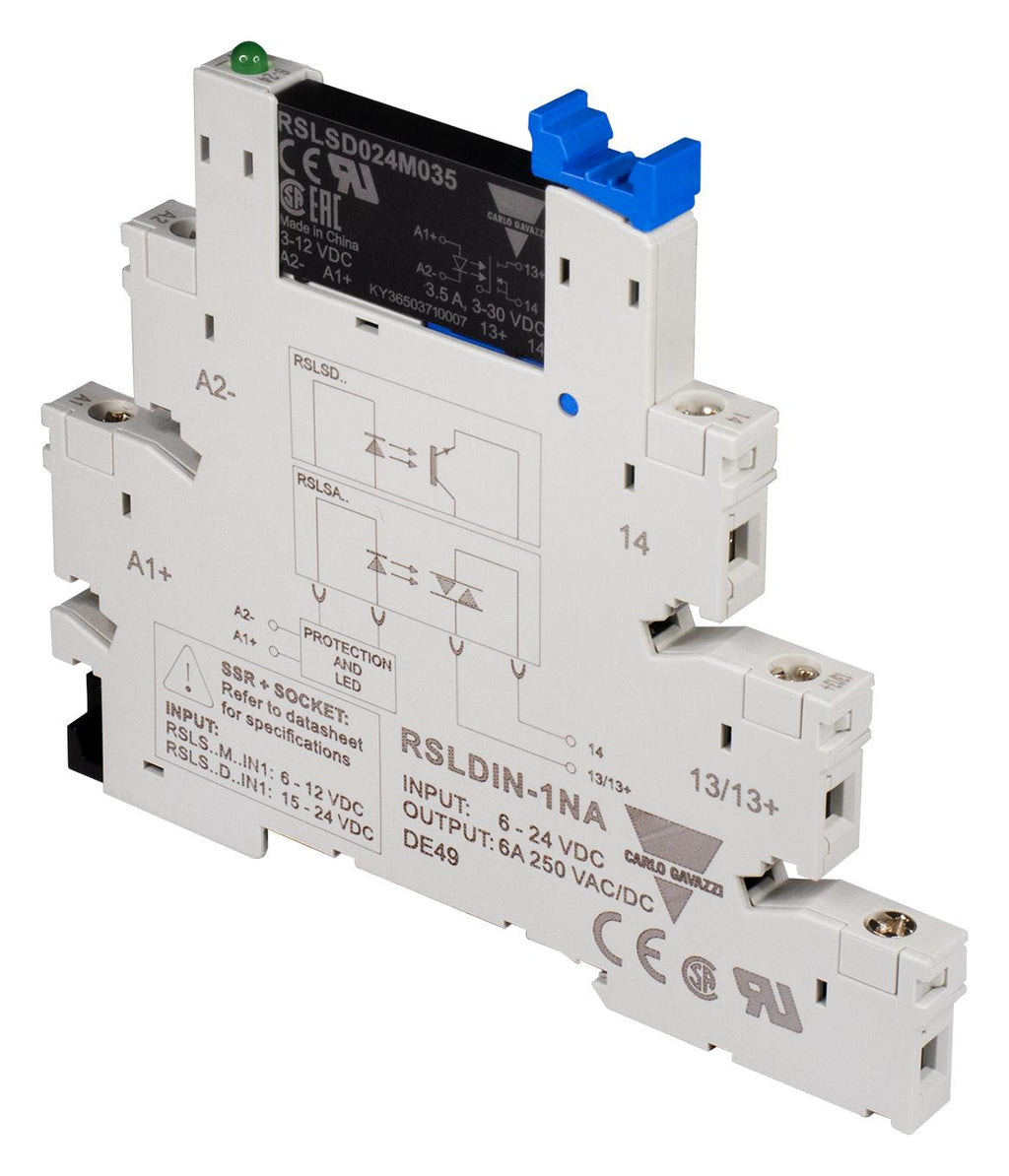

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
