Product Overview

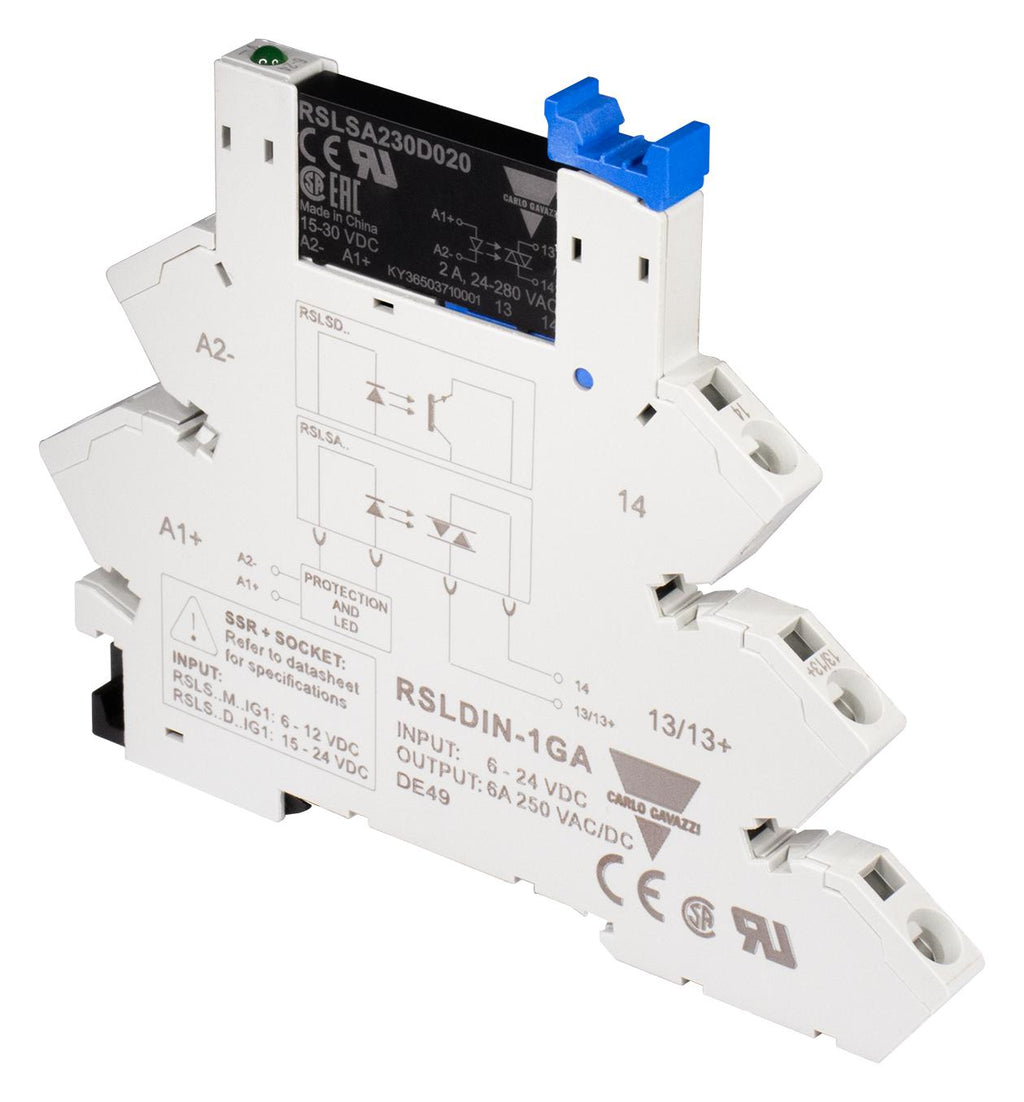

RSLSA230M020IG1 is a RSLS series plug-in/PCB mount solid state relay with an ultra-slim width of 5mm ideally suited for compact spaces in control cabinets and for high-density PCB applications. The relay is held in place or released by a lever mechanism that prevents disconnection of the socket wiring during maintenance.
- Black PA66 (UL94 V0) material
- Polyurethane based resin (UL 94 V0) potting compound
- IP20 touch protection and III overvoltage category
- Rated output voltage: 230V AC (12 - 280V AC) and 600Vp blocking voltage
- Control voltage: 5V DC (3 - 12V DC)
- 2A AC max rated current
- AC switching (zero cross switching)
- Wear-free, long service life
- Fast switching response for precise control and resistant to vibration and shock
- Pre-assembled in spring terminal socket, 6-24V DC input
Product details
| Contact Configuration |
SPST-NO |
| Operating Voltage Max |
280VAC |
| Relay Terminals |
Spring |
| Operating Voltage Min |
24VAC |
| Control Voltage Max |
12VDC |
| SVHC |
No SVHC (21-Jan-2025) |
| Load Current |
2A |
| Relay Mounting |
DIN Rail |
| Switching Mode |
Zero Crossing |
| Control Voltage Min |
6VDC |
| Product Range |
RSLS Series |
Other details
| Brand |
CARLO GAVAZZI |
| Part Number |
RSLSA230M020IG1 |
| Quantity |
Each |
| Technical Data Sheet (81.00B) EN |
View or download |
