Product Overview

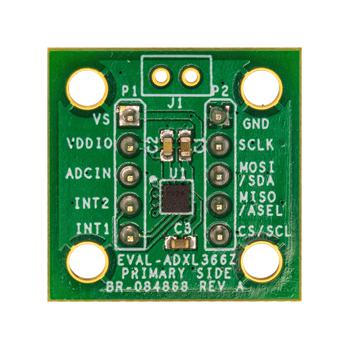

EVAL-ADXL366Z is a simple evaluation board that allows quick evaluation of the performance of the ADXL366 ultra-low power, 3-axis, digital output, microelectronic mechanical system (MEMS) accelerometer. The evaluation board that comes with a set of two 5-pin headers (not installed) and provides access to all ADXL366 communication and interrupt pins. The EVAL-ADXL366Z also comes with a set of four mounting holes that are compatible with the EVAL-XLMOUNT1, which is an aluminium block with a central mounting hole.
- Simply attached to the prototyping board or PCB via two sets of 5-pin headers
- Small size and board stiffness minimizes impact on the system and acceleration measurements
- Board size is 20mm × 20mm
- Four mounting holes are set 15mm × 15mm at the corners of the PCB
Product details
| Board Type |
Evaluation Board |
| Application Sub Type |
3-Axis MEMS Accelerometer |
| SVHC |
No SVHC (04-Feb-2026) |
| IC / Module Used |
ADXL366BCCZ-RL |
| Kit Contents |
Evaluation Board ADXL366BCCZ-RL |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
EVAL-ADXL366Z |
| Quantity |
Each |
| Technical Data Sheet (92.00B) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
