Product Overview

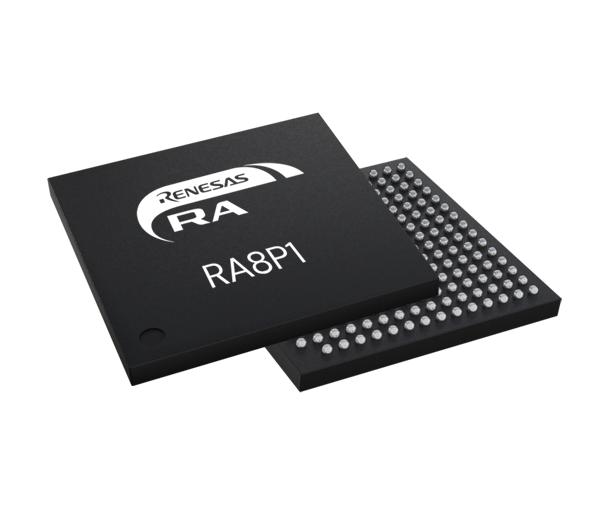

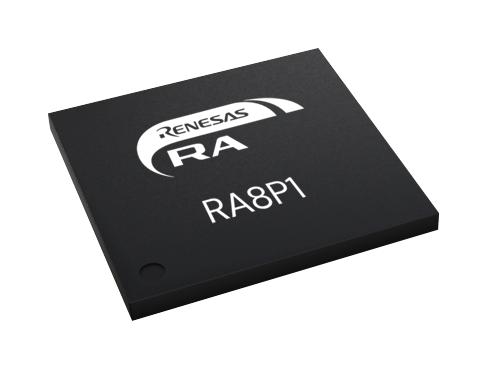

RENESAS R7KA8P1KFLCAB#UC0 ARM MCU, RA Family RA8 Series RA8P1 Group Microcontrollers, ARM Cortex-M85F, ARM Cortex-M33F
Product details
| Product Range |
RA Family RA8 Series RA8P1 Group Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
1MB |
| No. of I/O's |
142I/O's |
| RAM Memory Size |
2MB |
| ADC Resolution |
16Bit |
| Supply Voltage Max |
3.63V |
| Operating Temperature Max |
95°C |
| MCU Family |
RA |
| Qualification |
- |
| Device Core |
ARM Cortex-M85F, ARM Cortex-M33F |
| Operating Frequency Max |
1GHz |
| No. of Pins |
224Pins |
| Interfaces |
CANFD, Ethernet, I2C, I3C, SCI, SPI, UART, USB |
| ADC Channels |
12Channels |
| Supply Voltage Min |
1.62V |
| Operating Temperature Min |
0°C |
| IC Mounting |
Surface Mount |
| MCU Series |
RA8 |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
RENESAS |
| Part Number |
R7KA8P1KFLCAB#UC0 |
| Quantity |
Each |
| Technical Data Sheet (5.15MB) EN |
View or download |
