Product Overview

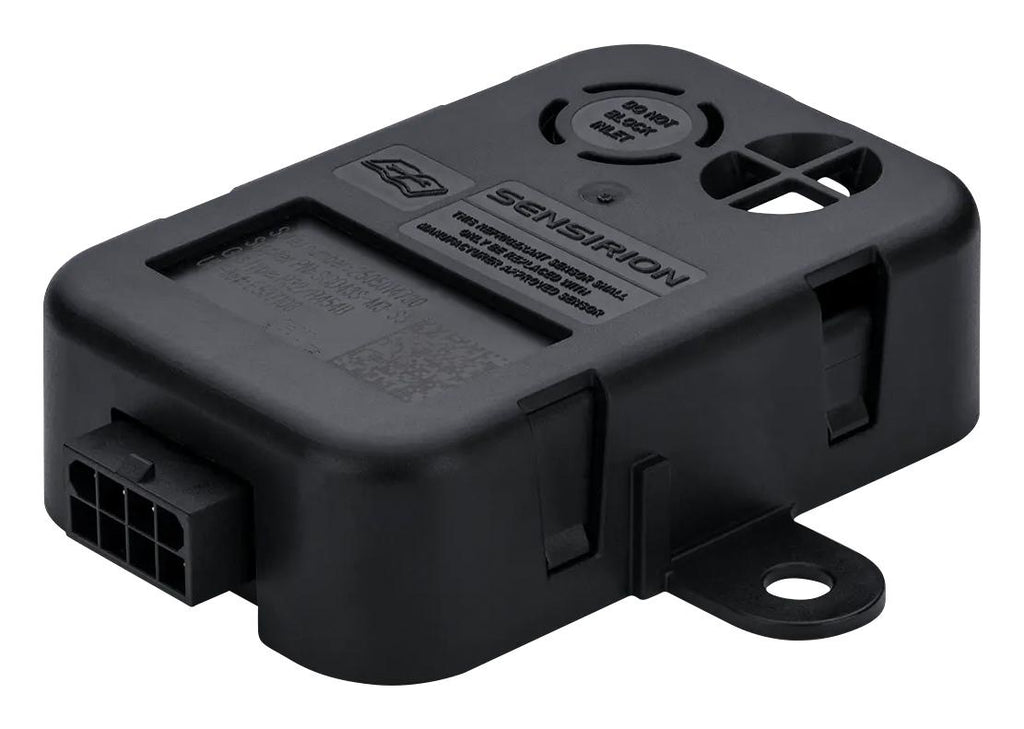

SGD43S-M3-S7 is a SGD4x series of A2L refrigerant detection product, specifically designed for the HVACR industry as a complete refrigerant detection system (RDS). It is based on the thermal conductivity measurement principle and features a dual contact relay output that can trigger a signal relay to start a blower, switch off the load or warn a control board. Easy integration and installer-friendly feedback are enabled by a status-indicating LED for quick visual feedback. With its fast response time and broad compatibility with A2L refrigerants due to its versatile multi-refrigerant calibration, it is an essential component for both residential and commercial HVACR systems. The SGD43S-M3-S7 ensures effective leak detection and complies with stringent industry standards, including UL 60335-2-40 and UL 60335-2-89. The single unit is triple calibrated for R-454A, R-454C and R-455A in refrigeration applications.
- 8-pin sealable connector
- 30sec response time
- Operating relative humidity range from 0 to 100%RH
- Supply voltage of 24V
- Calibrated gas concentration sensing
- Self-monitored sensing for reliable performance over time
- Dual relay output & digital interface
- Maintenance-free, > 15 year lifetime
- Operating temperature range from -40 to 85°C
- Size (LxWxH) is 90 x 55 x 24mm
Product details
| Gas Type |
R454A, R454C, R455A |
| Accuracy |
± 2.5% |
| Product Range |
SGD4x Series |
| Particle Count Max |
- |
| Sampling Method |
Thermal Conductivity Detection (TCD) |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
SENSIRION |
| Part Number |
SGD43S-M3-S7 |
| Quantity |
Each |
| Technical Data Sheet (90.00B) EN |
View or download |
