Product Overview

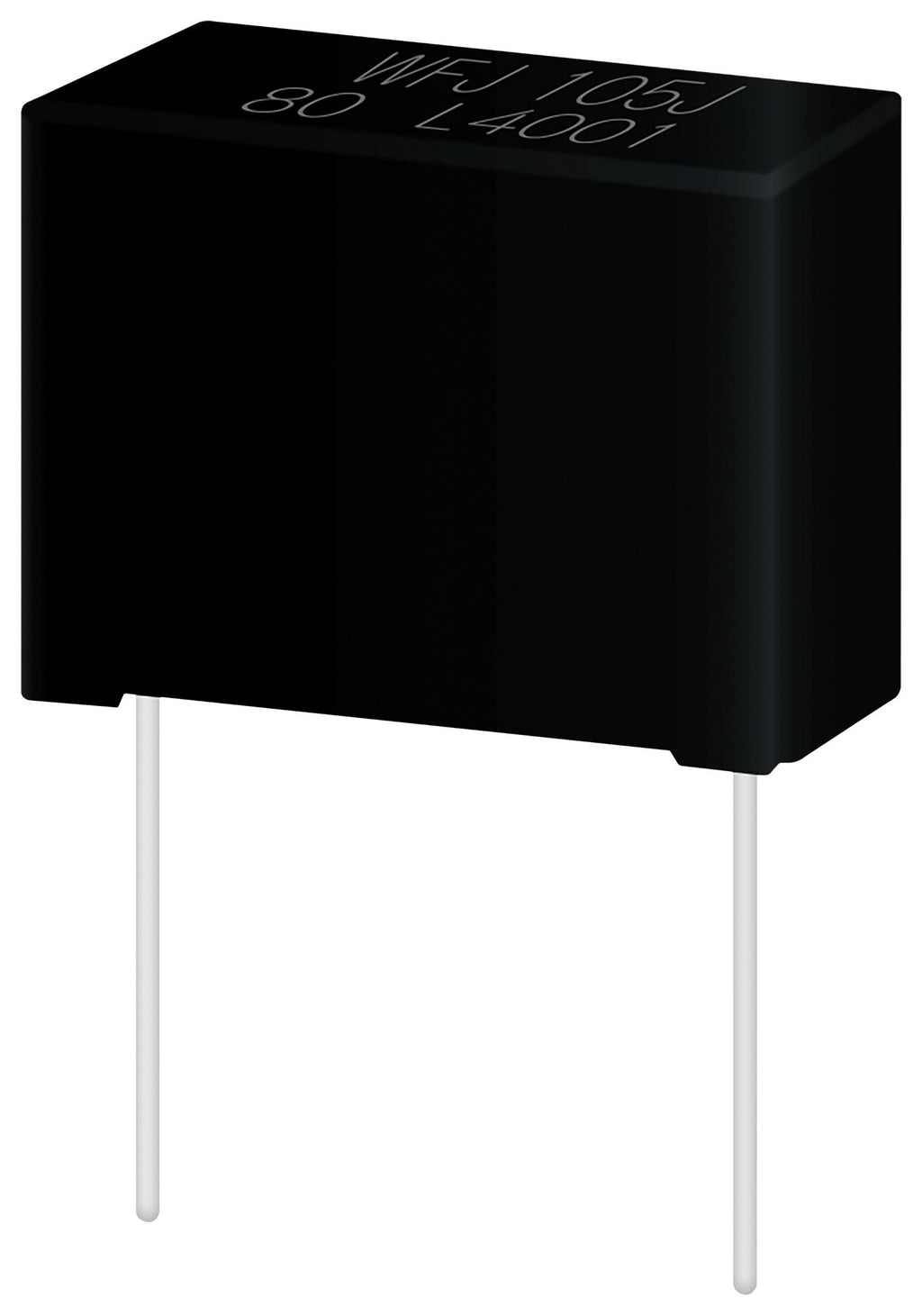

PANASONIC ECWFJ1B475J Power Film Capacitor, Metallized PP, Radial Box - 2 Pin, 4.7 µF, ± 5%
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
4.7µF |
| Typical Applications |
DC/DC, AC/DC Converter Circuit, High Frequency, High Current |
| Voltage(AC) |
- |
| Humidity Rating |
- |
| Lead Spacing |
27.5mm |
| Peak Current |
- |
| ESR |
8200µohm |
| Product Length |
31.5mm |
| Product Height |
35mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
1.1kV |
| Capacitor Terminals |
Radial Leaded |
| dv/dt Rating |
100V/µs |
| RMS Current (Irms) |
8.3A |
| Product Diameter |
- |
| Product Width |
18.5mm |
| Ripple Current |
- |
| Product Range |
ECWFJ Series |
| Operating Temperature Max |
110°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PANASONIC |
| Part Number |
ECWFJ1B475J |
| Quantity |
Each |
| Technical Data Sheet (77.00B) EN |
View or download |
