Product Overview

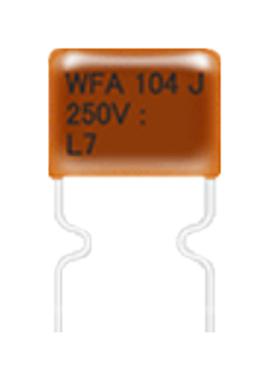

PANASONIC ECWF2225JA General Purpose Film Capacitor, Metallized PP, Radial Box - 2 Pin, 2.2 µF, ± 5%, 250 V
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
2.2µF |
| Voltage(AC) |
84V |
| Capacitor Mounting |
Through Hole |
| Humidity Rating |
0 |
| Product Length |
18.8mm |
| Product Height |
17.6mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Voltage(DC) |
250V |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
15mm |
| Product Width |
12.6mm |
| Product Range |
ECWF(A) Series |
| Operating Temperature Max |
105°C |
| SVHC |
No SVHC (04-Feb-2026) |
