Product Overview

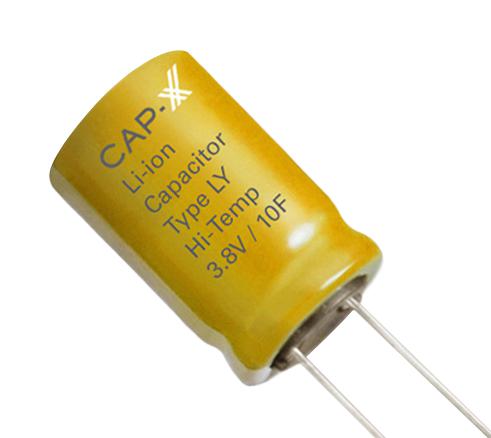

LY13R816025M227R-H is a LY13R8 series 3.8V radial lead lithium-ion capacitor. Designed in a compact cylindrical form, it delivers significantly higher capacitance than standard GY/HY cells of the same size. It is ideal for replacing small batteries, powering remote sensors with small energy harvesters and long-term power backup applications.
- 220F capacitance with ±20% tolerance
- 60mohm AC ESR max at 1kHz 100mohm DC ESR
- 40µA IL max at 120hrs
- 16mm diameter x 25mm length
- High temperature variant
- Temperature range from -15°C to +70°C (85°C at 3.5V)
- Extremely long cycle life of 500,000 cycles
Product details
| Voltage(DC) |
3.8V |
| Discharge Current Max |
- |
| Capacitance Tolerance |
± 20% |
| Capacitor Mounting |
Through Hole |
| Lead Spacing |
7.5mm |
| Product Height |
25mm |
| Operating Temperature Min |
-15°C |
| Qualification |
- |
| Capacitance |
220F |
| ESR |
0.1ohm |
| Capacitor Case / Package |
Can |
| Capacitor Terminals |
Radial Leaded |
| Product Diameter |
16mm |
| Product Range |
LY13R8 Series |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
CAP-XX |
| Part Number |
LY13R816025M227R-H |
| Quantity |
Each |
| Technical Data Sheet (922.82KB) EN |
View or download |
