Product Overview

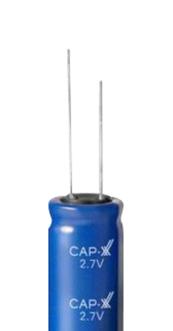

HY12R710020V505R is a HY series supercapacitor. It is a high-temperature (85°C) cylindrical cell capacitor ideal for a wide range of applications. It can support energy harvesting for wireless sensors, provide peak power for GSM/GPRS transmission, and assist low-power batteries such as Lithium Thionyl Chloride batteries during automatic meter reading (AMR) data transmission and last-gasp transmission at the end of battery life. Additionally, they deliver peak power for locks, actuators, and portable drug delivery systems, as well as short-term bridging power during power interruptions or battery hot swaps.
- Single cell supercapacitor
- 5F capacitance with +30%/-10% tolerance
- 2.7V (surge 2.85V) voltage
- 10mm x 20mm (dia x length) size
- Temperature range from -40°C to +85°C
- High power output to support peak current loads
- On-board energy storage to handle power surges (high capacitance and energy density
- Long cycle life
Product details
| Capacitance |
5F |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
5mm |
| Capacitor Case / Package |
Can |
| ESR |
0.113ohm |
| Product Length |
- |
| Product Height |
20mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Voltage(DC) |
2.7V |
| Capacitance Tolerance |
-10%, +30% |
| Lifetime @ Temperature |
1000 hours @ 85°C |
| Capacitor Mounting |
Through Hole |
| Product Diameter |
10mm |
| Product Width |
- |
| Product Range |
HY Series |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
CAP-XX |
| Part Number |
HY12R710020V505R |
| Quantity |
Each |
| Technical Data Sheet (850.76KB) EN |
View or download |
