Product Overview

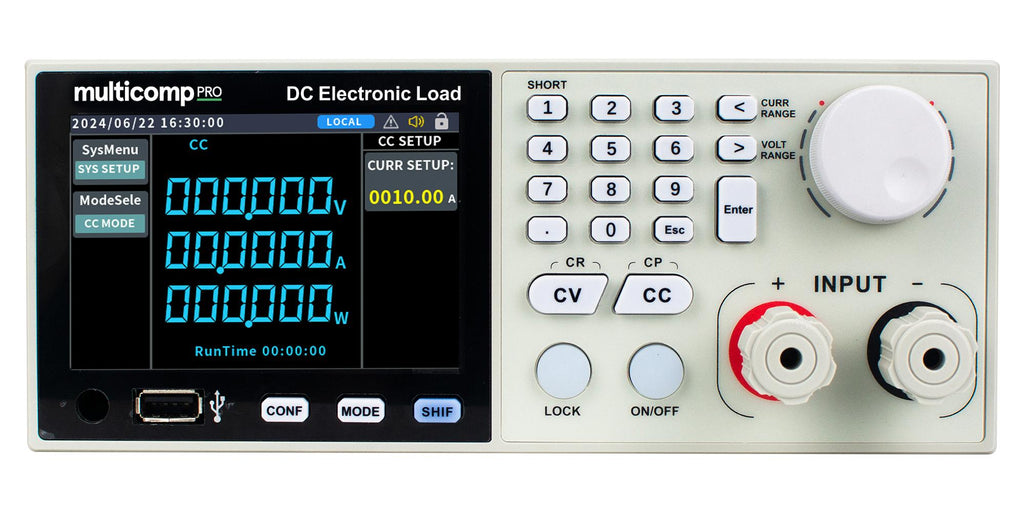

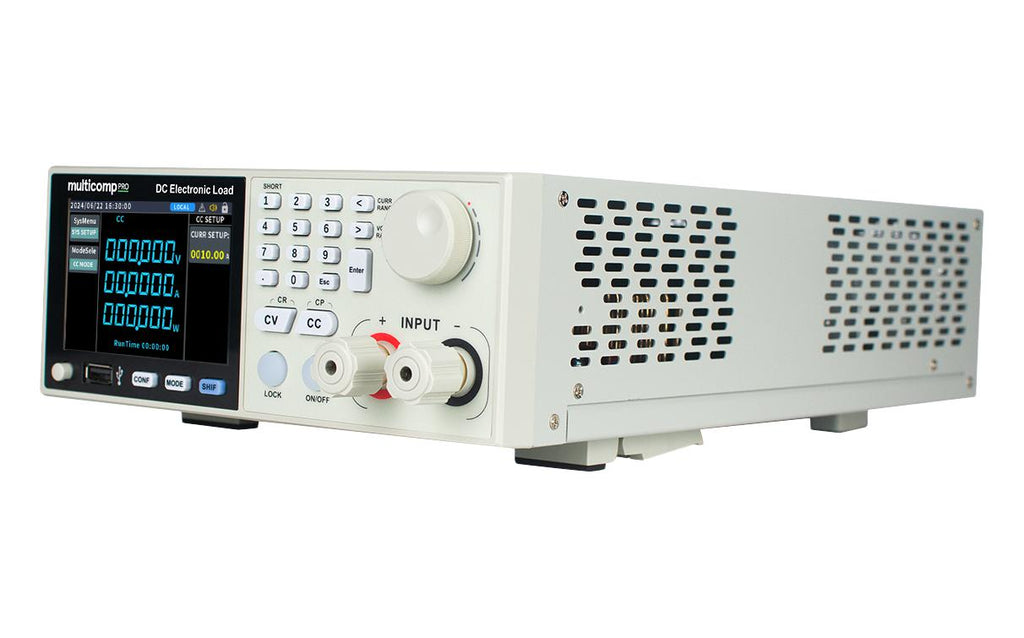

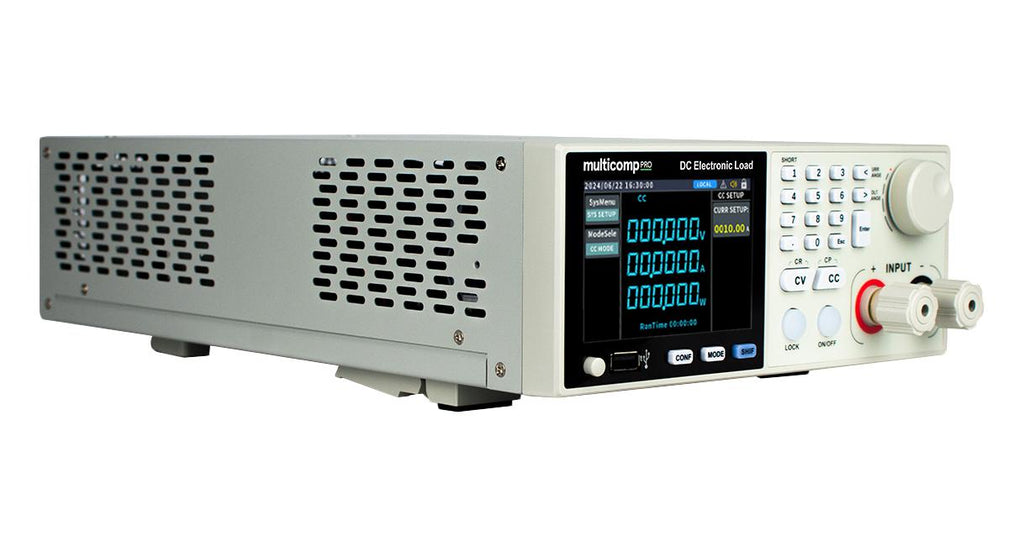

MP8512C is a programmable DC electronic load. It supports four operating modes: constant voltage, constant current, constant resistance, and constant power. It includes multiple protections such as overvoltage, overcurrent, overpower, and overtemperature, and features a standard RS232 interface with SCPI protocol support.
- 1/2 2U standard rack size, suitable for rack-mount use
- 3.9-inch TFT colour LCD display
- Measurement range: 0-600V/0-40A, 400W
- Dynamic current testing supports, with dynamics up to 5kHz
- High-resolution voltage and current readback: 1mV/0.1mA
- Remote compensation supports
- Internal intelligent fan with forced air cooling
- Dimension is 375mm x 215mm x 88mm
Product details
| Product Range |
- |
| DC Load Type |
Programmable |
| Operating Voltage Max |
600V |
| Manufacturer Warranty |
3 Years |
| Power Rating |
400W |
| Operating Voltage Min |
0V |
| Operating Current Max |
40A |
| SVHC |
No SVHC (21-Jan-2025) |
