Product Overview
77.F1.8.230.8650 is a 77 series Hockey puck solid state relay. Suggested applications include heater control, lamps, solenoid, and contactor driver.
- 24 to 660V AC switching load voltage
- “Hockey puck” housing with folding screw cover
- High endurance and switching speed, silent switching
- Spark and bounce-free switching, low control power
- Relay-style: input and output terminals on opposite sides
- Mounting on control cabinet sheet metal or on heatsink
- 1NO output configuration
- 80/800A rated current IN/max. peak current (10ms)
- Operating frequency range from 47 to 400Hz
- Ambient temperature range from -30 to +80°C
Product details
| Contact Configuration |
SPST-NO |
| Operating Voltage Max |
660VAC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
24VAC |
| Control Voltage Max |
280VAC |
| SVHC |
No SVHC (04-Feb-2026) |
| Load Current |
80A |
| Relay Mounting |
Panel Mount |
| Switching Mode |
Zero Crossing |
| Control Voltage Min |
90VAC |
| Product Range |
77 Series |
Other details
| Brand |
FINDER |
| Part Number |
77.F1.8.230.8650 |
| Quantity |
Each |
| Technical Data Sheet (47.00B) EN |
View or download |

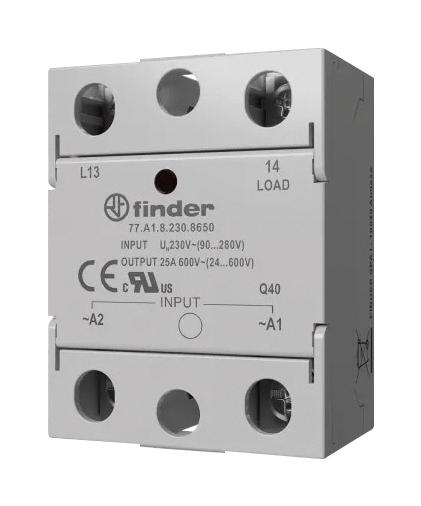

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
