Product Overview

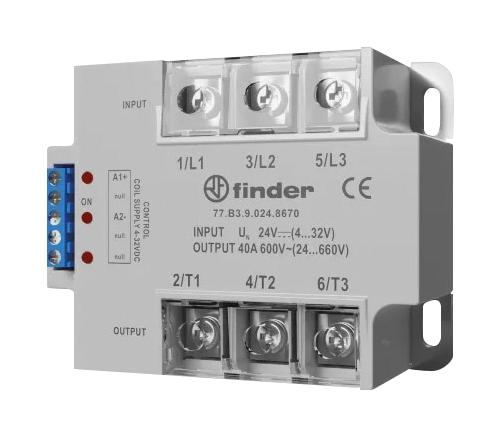

77.B3.9.024.8671 is a 77 series Hockey puck solid-state relay. It is ideal for heater or motor control.
- High endurance and switching speed, random switch-on
- Silent switching, spark and bounce-free switching, low control power
- Contactor-style: input and output terminals on adjacent sides
- Mounting on control cabinet sheet metal or on heatsink
- 40A/600V AC output, 3NO output configuration
- Ambient temperature range from -30 to +80°C
- 47 to 400Hz operating frequency range
Product details
| Contact Configuration |
3PST-NO |
| Operating Voltage Max |
660VAC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
24VAC |
| Control Voltage Max |
32VDC |
| SVHC |
No SVHC (04-Feb-2026) |
| Load Current |
40A |
| Relay Mounting |
Panel Mount |
| Switching Mode |
Random Turn On |
| Control Voltage Min |
4VDC |
| Product Range |
77 Series |
Other details
| Brand |
FINDER |
| Part Number |
77.B3.9.024.8671 |
| Quantity |
Each |
| Technical Data Sheet (47.00B) EN |
View or download |
