Product Overview

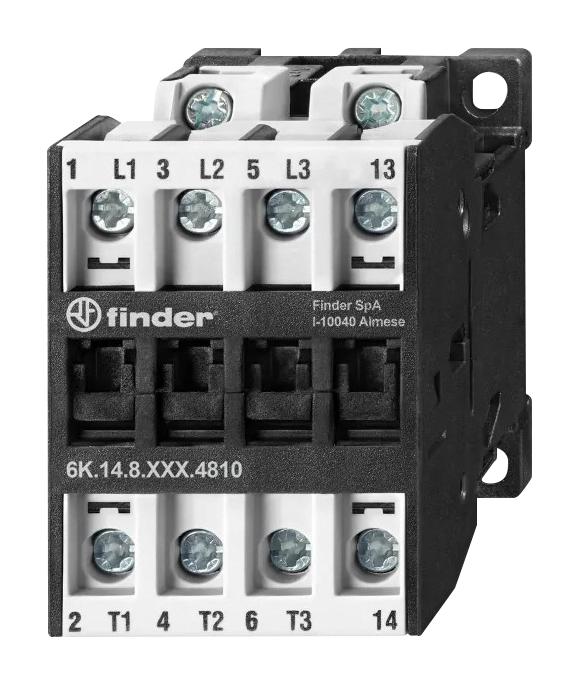

6K.14.8.230.4318 is a 6K series industrial contactor. Typical applications include power generators, back-up generators, industrial motors, panels for electrical distribution, pump control.
- AgSnO2 contact material
- 35mm rail (EN 60715) mount
- Protection category: IP20
- Number of poles: 4
- 18A rated current AC3
- 400V AC rated voltage
- 7.5kW rated power AC3 at 400V
- Operate/release time is 10/8ms
- 0.8Nm screw torque
Product details
| Load Current Inductive |
18A |
| Contact Configuration |
4PST-NO |
| Switching Power AC3 |
10kW |
| Coil Voltage VAC Nom |
230V |
| Switching Power AC1 |
- |
| Switching Current AC3 |
18A |
| SVHC |
No SVHC (04-Feb-2026) |
| Relay Mounting |
DIN Rail |
| No. of Poles |
4 Pole |
| Switching Current AC1 |
32A |
| Coil Voltage VDC Nom |
- |
| Load Current Resistive |
32A |
| Product Range |
6K Series |
Other details
| Brand |
FINDER |
| Part Number |
6K.14.8.230.4318 |
| Quantity |
Each |
| Technical Data Sheet (47.00B) EN |
View or download |
