Product Overview

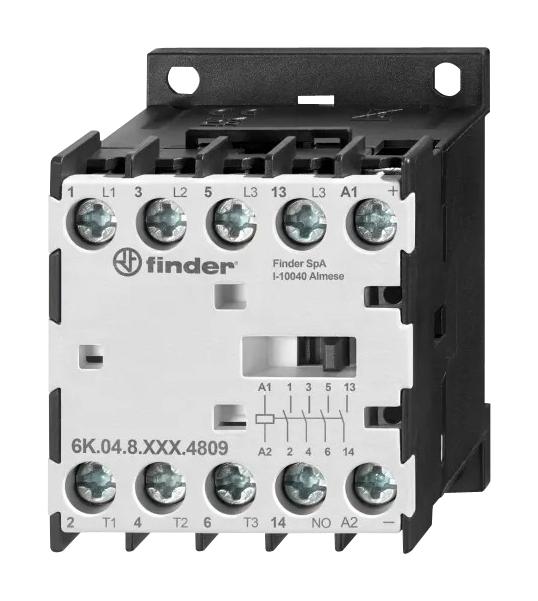

6K.04.8.230.4312 is a 6K series industrial contactor. Typical applications include power generators, back-up generators, industrial motors, panels for electrical distribution, pump control.
- AgSnO2 contact material
- 35mm rail (EN 60715) mount
- Protection category: IP20
- Number of poles: 4
- 12A rated current AC3
- 400V AC rated voltage
- 5.5kW rated power AC3 at 440V
- Operate/release time is 15/8ms
- 0.8Nm screw torque
Product details
| Load Current Inductive |
12A |
| Contact Configuration |
4PST-NO |
| Switching Power AC3 |
5.5kW |
| Coil Voltage VAC Nom |
230V |
| Switching Power AC1 |
- |
| Switching Current AC3 |
12A |
| SVHC |
No SVHC (04-Feb-2026) |
| Relay Mounting |
DIN Rail |
| No. of Poles |
4 Pole |
| Switching Current AC1 |
20A |
| Coil Voltage VDC Nom |
- |
| Load Current Resistive |
20A |
| Product Range |
6K Series |
Other details
| Brand |
FINDER |
| Part Number |
6K.04.8.230.4312 |
| Quantity |
Each |
| Technical Data Sheet (47.00B) EN |
View or download |
