Product Overview

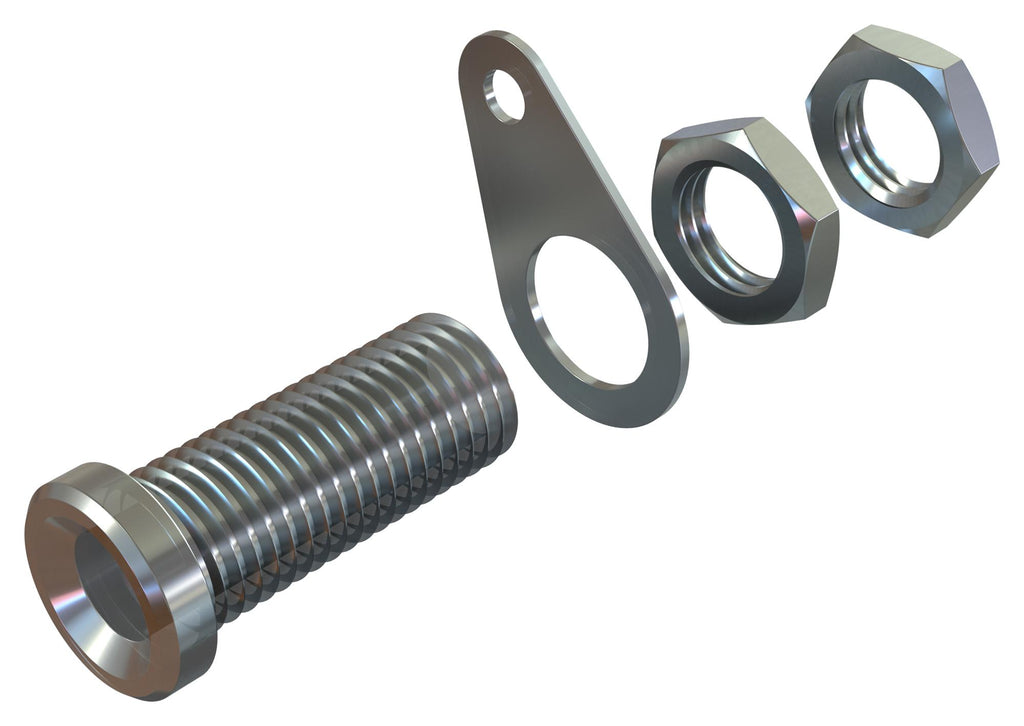

CT4544 is a panel mount uninsulated banana jack with a solder tab. Featuring a nickel-plated solder tab for effortless wire soldering and a durable nickel-plated brass body, the CT4544 provides support for a 36A maximum current rating, and operates within a flexible temperature range of -20°C to +150°C. It is compatible with standard 4mm banana plugs and is supplied with a two hex nuts and solder tab, making it suited for test and measurement applications, power distribution, and custom electronic builds.
Product details
| Gender |
Jack |
| Current Rating |
36A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass |
| Product Range |
- |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
- |
| Connector Colour |
- |
| Contact Termination Type |
Solder |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
CAL TEST ELECTRONICS |
| Part Number |
CT4544 |
| Quantity |
Each |
| Drawing (75.00B) EN |
View or download |
