Product Overview
HY25R58E22V155RN is a HY series supercapacitor designed for high-temperature environments (up to 85°C), offering excellent performance in a compact cylindrical form. It is ideal for energy harvesting in wireless sensors, delivering peak power during GSM/GPRS transmissions, and supporting low-power batteries like Lithium Thionyl Chloride in applications such as automatic meter reading and last gasp data transmission. The supercapacitor also provides reliable peak power for locks, actuators, and portable drug delivery systems, as well as short-term bridging power during power interruptions or battery hot swaps.
- 1.5F capacitance with +30% / -10% tolerance
- 180mohm AC ESR max at 1kHz, 250mohm DC ESR
- 6µA IL max at 72hrs
- 8.5mm x 17mm x 22mm thick x width x length
- Rated voltage of 5.5V (surge 5.7V)
- Wide temperature range (-40ºC to +85ºC)
- Radial leads
- No balancing
- High power output to support peak current loads
- On-board energy storage to handle power surges (high capacitance and energy density)
Product details
| Capacitance |
1.5F |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
12mm |
| Capacitor Case / Package |
- |
| ESR |
0.25ohm |
| Product Length |
17mm |
| Product Height |
22mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Voltage(DC) |
5.5V |
| Capacitance Tolerance |
-10%, +30% |
| Lifetime @ Temperature |
1000 hours @ 85°C |
| Capacitor Mounting |
Through Hole |
| Product Diameter |
- |
| Product Width |
8.5mm |
| Product Range |
HY Series |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
CAP-XX |
| Part Number |
HY25R58E22V155RN |
| Quantity |
Each |
| Technical Data Sheet (850.76KB) EN |
View or download |

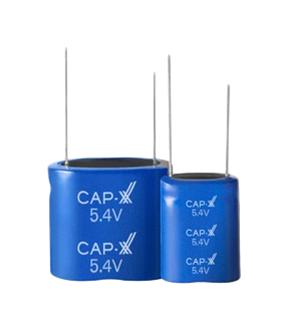

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
