Product Overview

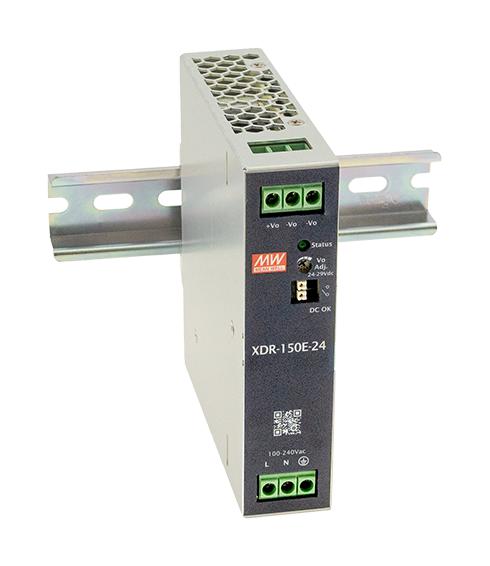

XDR-150E-24 is a XDR-150E series, 150W AC/DC economical ultra-slim industrial DIN rail power supply. Key features of this series include a narrow 30mm casing, optimising system installation space, and an ultra-wide input range suitable for global use. It boasts a maximum efficiency and a low standby power consumption less than 1W for energy savings and carbon reduction. It features UL61010, TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN EN61010; CB IEC62368-1, IEC61558-1, IEC61010; RCM AS/NZS 62368-1, AS/NZS 61558-1/-2-16;BSMI CNS15598-1;CCC GB4943.1 safety certifications. Suitable for industrial control system, semiconductor fabrication equipment, factory automation, electro-mechanical apparatus, and battery charger applications.
- Input voltage range from 85-264V AC and 120 to 370V DC
- 24V DC rated output voltage, 5.2/6.5A rated output current at 115/230V AC
- High efficiency up to 91% and 156W rated power at 230V AC
- Built-in constant current limiting circuit and built-in DC OK relay contact
- Protections: short circuit, overload, over-voltage, over-temperature
- Fanless design, cooling by free air convection
- Over-voltage category III (OVC III)
- Wide operating temperature range of -40°C to +70°C (up to +50°C at full load)
- Operating altitude up to 5km, can be installed on DIN rail TS-35/7.5 or 15
- 3-year warranty
Product details
| Power Supply Applications |
ITE, Industrial & Laboratory Equipment |
| Output Power Max |
156W |
| Output Current - Output 1 |
6.5A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Fixed |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
85V AC to 264V AC |
| Product Range |
XDR-150E Series |
Other details
| Brand |
MEAN WELL |
| Part Number |
XDR-150E-24 |
| Quantity |
Each |
| Technical Data Sheet (332.27KB) EN |
View or download |
