Product Overview

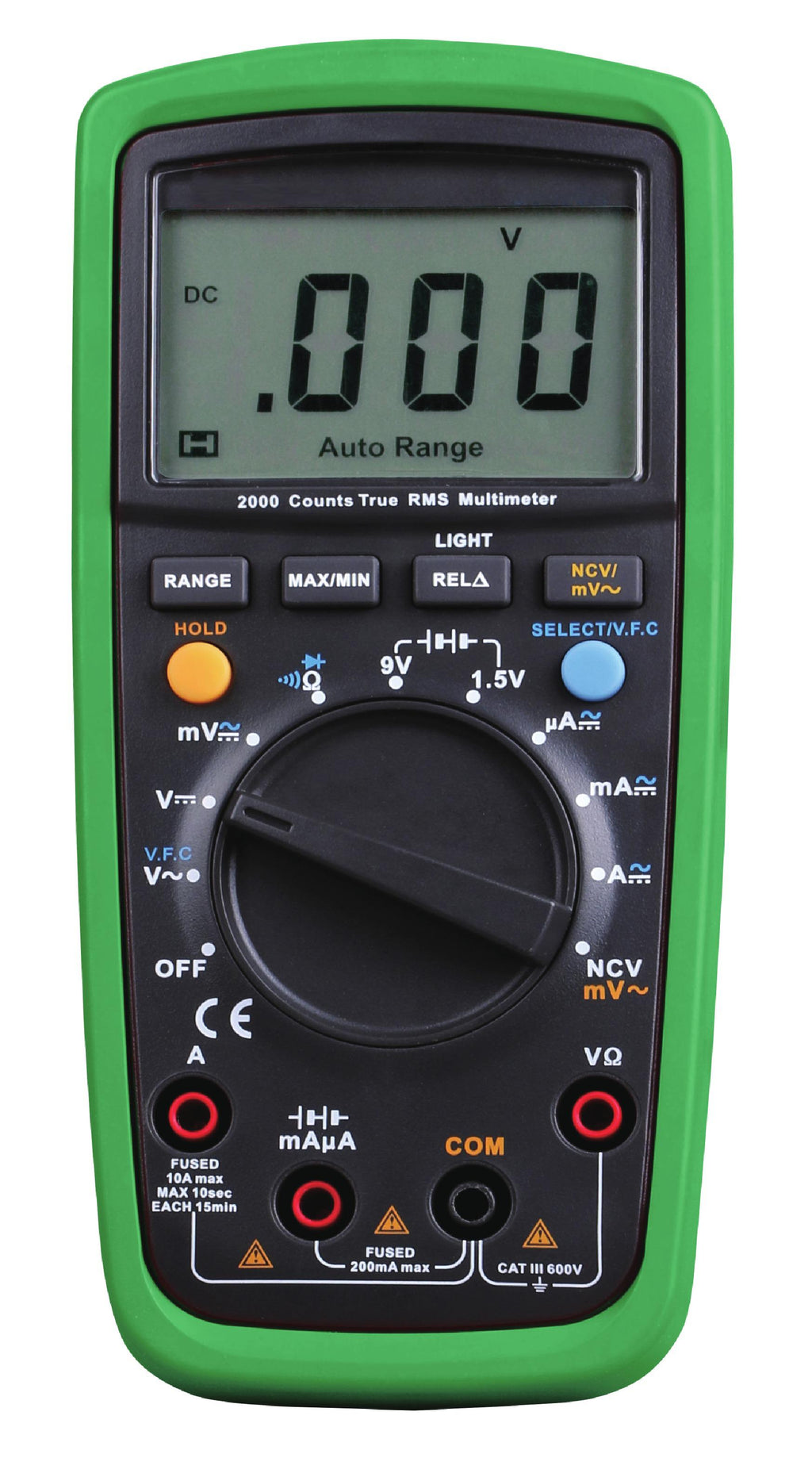

This series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. This model includes special features such as LoZ (ACV) for measuring 'ghost' voltage. It is built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. This is designed with black EBTN display and it is a perfect meter for working in dark environments.
- CAT III 600V
- True RMS
- NCV continuity buzzer
- Unique battery test for testing 1.5V/9V batteries (UT139A)
Product details
| DMM Functions |
AC/DC Current, AC/DC Voltage, Capacitance, Diode, Duty Cycle, Frequency, Resistance, Temperature |
| DMM Response Type |
True RMS |
| Range Selection |
Auto, Manual |
| Voltage Measure AC Max |
600V |
| Current Measure AC Max |
10A |
| Manufacturer Warranty |
3 Years |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Digits |
3.5 |
| Display Count |
2000 |
| Voltage Measure DC Max |
600V |
| Current Measure DC Max |
10A |
| Resistance Measure Max |
20Mohm |
| Product Range |
- |
Other details
