Product Overview

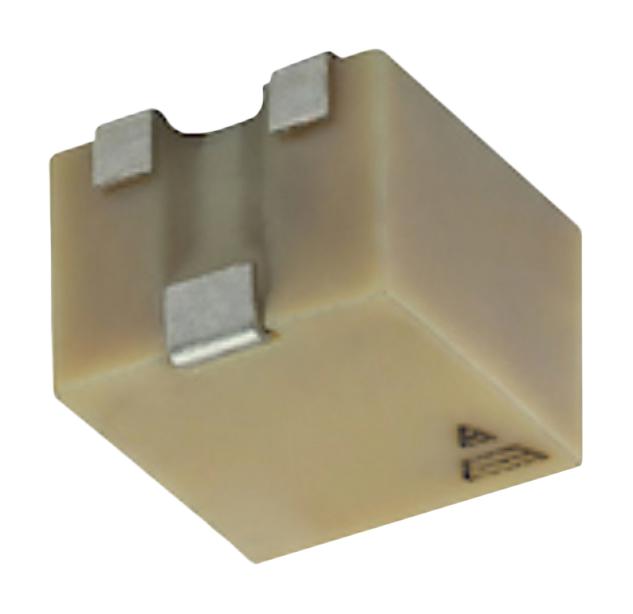

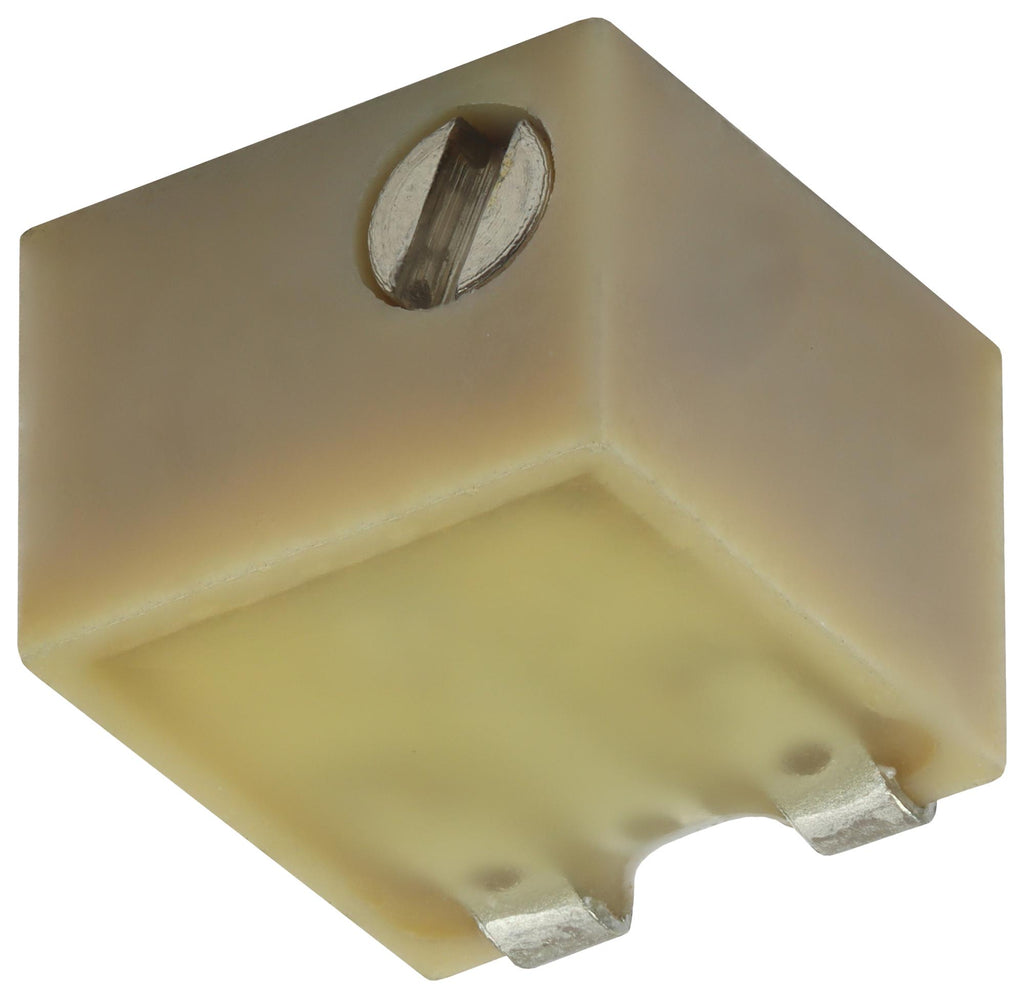

VISHAY TSM41YJ501KR05 Trimmer, Multi Turn, Cermet, Top Adjust, 500 ohm, Surface Mount, 12 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Top Adjust |
| Potentiometer Mounting |
Surface Mount |
| Product Range |
TSM41 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
4 mm Square |
| Product Length |
4.8mm |
| Product Height |
5.3mm |
| Operating Temperature Max |
140°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Element Material |
Cermet |
| Track Resistance |
500ohm |
| No. of Turns |
12Turns |
| Power Rating |
250mW |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Case / Package |
SMD |
| Product Width |
4mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
VISHAY |
| Part Number |
TSM41YJ501KR05 |
| Quantity |
Each |
| Technical Data Sheet (108.04KB) EN |
View or download |
