Product Overview

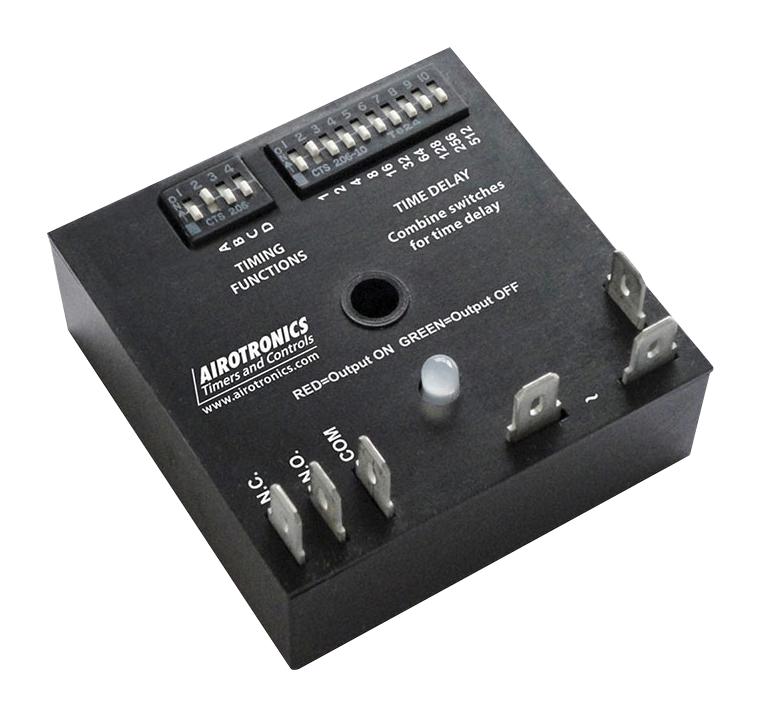

MC7003631H is a MC363 series multifunction timer with dipswitch adjustments cube relay output and LED indicator. It offers five timing modes in a single unit and time delay settings from 0.1 seconds to 1023 minutes, it is a cost-effective solution for myriad applications. It provides timed sequencing of functions such as liquid dispensing, moisture purging, stirring, controlled lighting, feed distribution, water and air circulation, and many more.
- Multifunction, accurate timing, binary dipswitch adjustable
- Wide selection of timing ranges, wide selection of AC and DC input voltages
- Totally encapsulated for protection from harsh environments
- 100% operational testing, multifunction and resettable operation
- 12V DC input voltage, 10A resistive maximum output current
- 250mS typ recycle / start-up time delay
- Encapsulated circuitry, MOV transient protection
- Operating temperature range from -25°C to +60°C
Product details
| Contact Voltage VDC |
- |
| Time Max |
1023min |
| Contact Configuration |
SPDT |
| Relay Mounting |
Surface Mount |
| Relay Terminals |
Quick Connect / Screw |
| Timing Adjustment |
DIP Switch |
| Time Min |
0.1s |
| Product Range |
MC363 Series |
| Contact Current |
10A |
| Contact Voltage VAC |
- |
| Nom Input Voltage |
12VDC |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
AIROTRONICS |
| Part Number |
MC7003631H |
| Quantity |
Each |
| Technical Data Sheet (526.65KB) EN |
View or download |
