Description
Product Overview

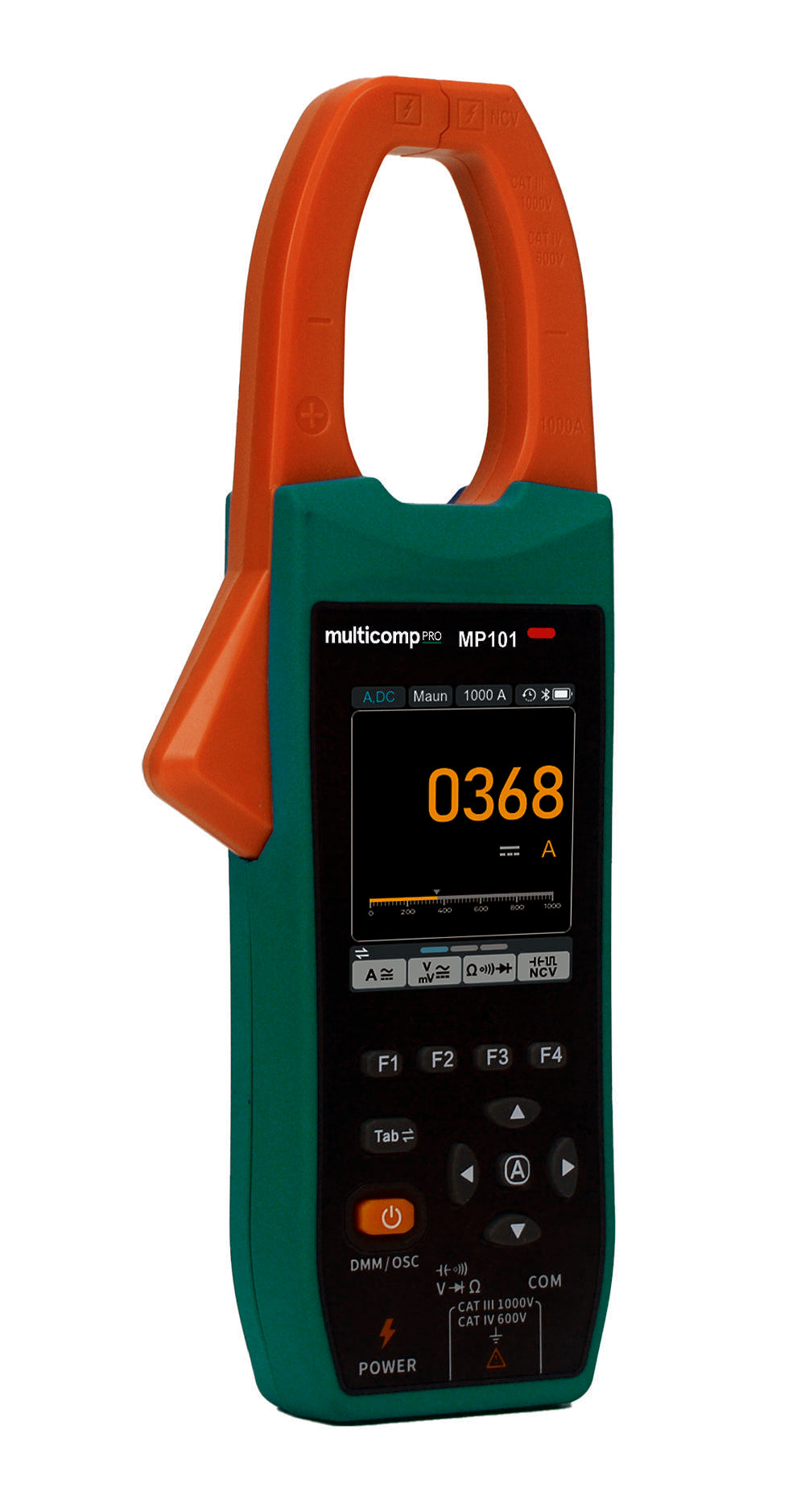

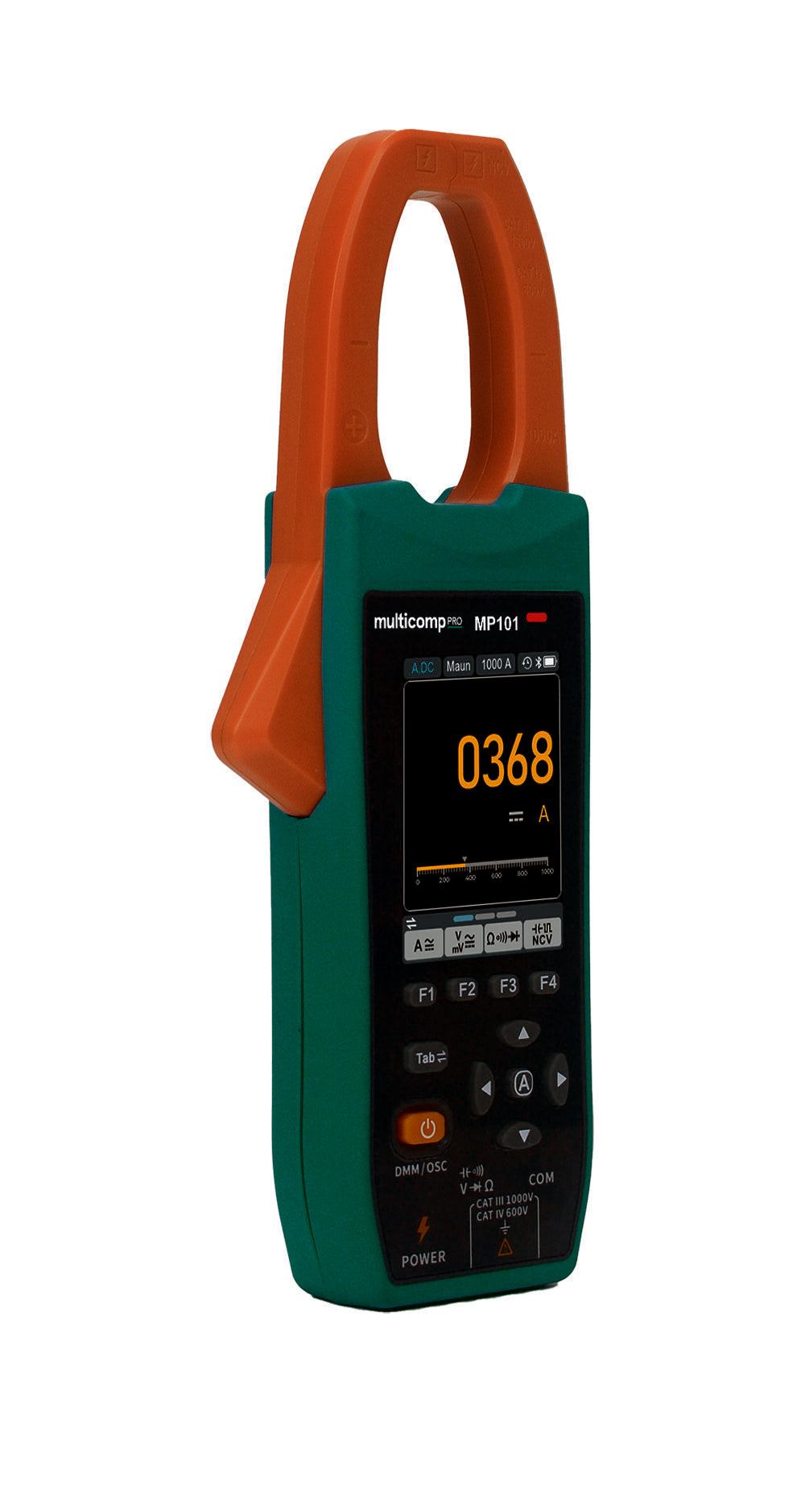

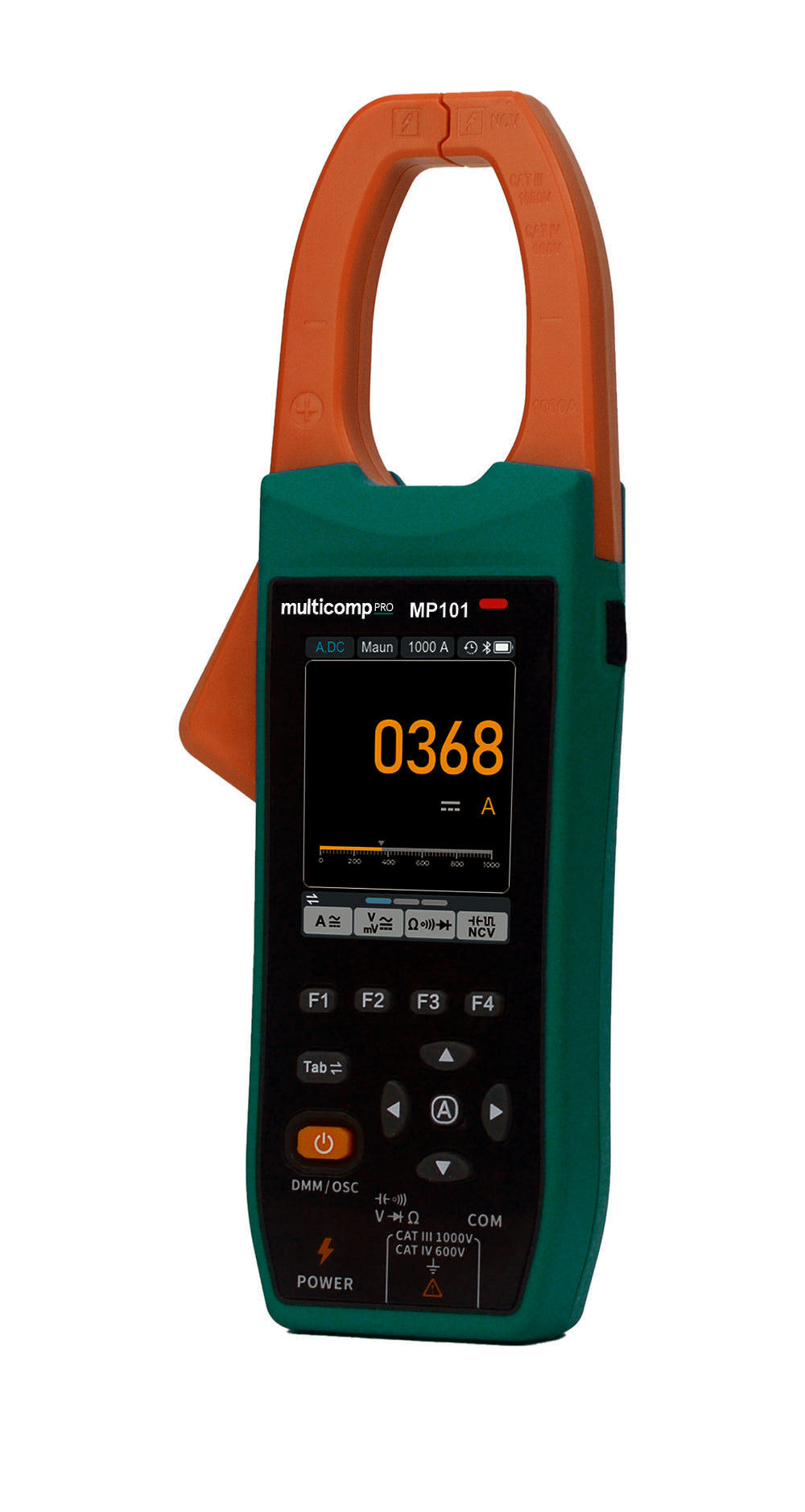

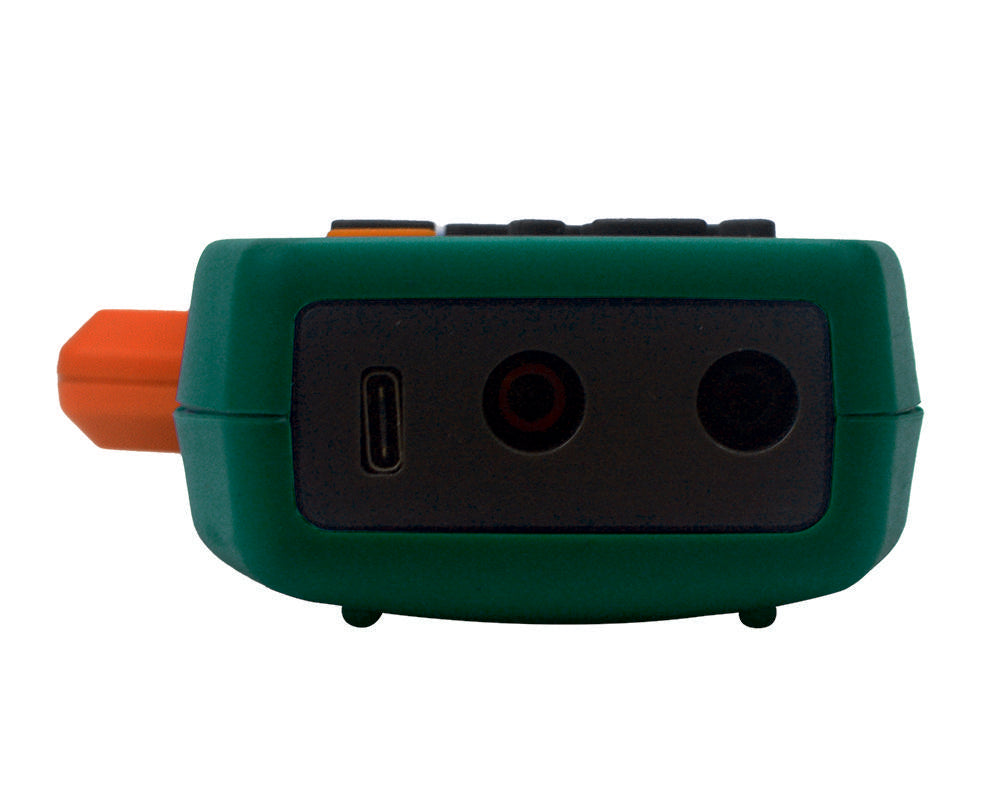

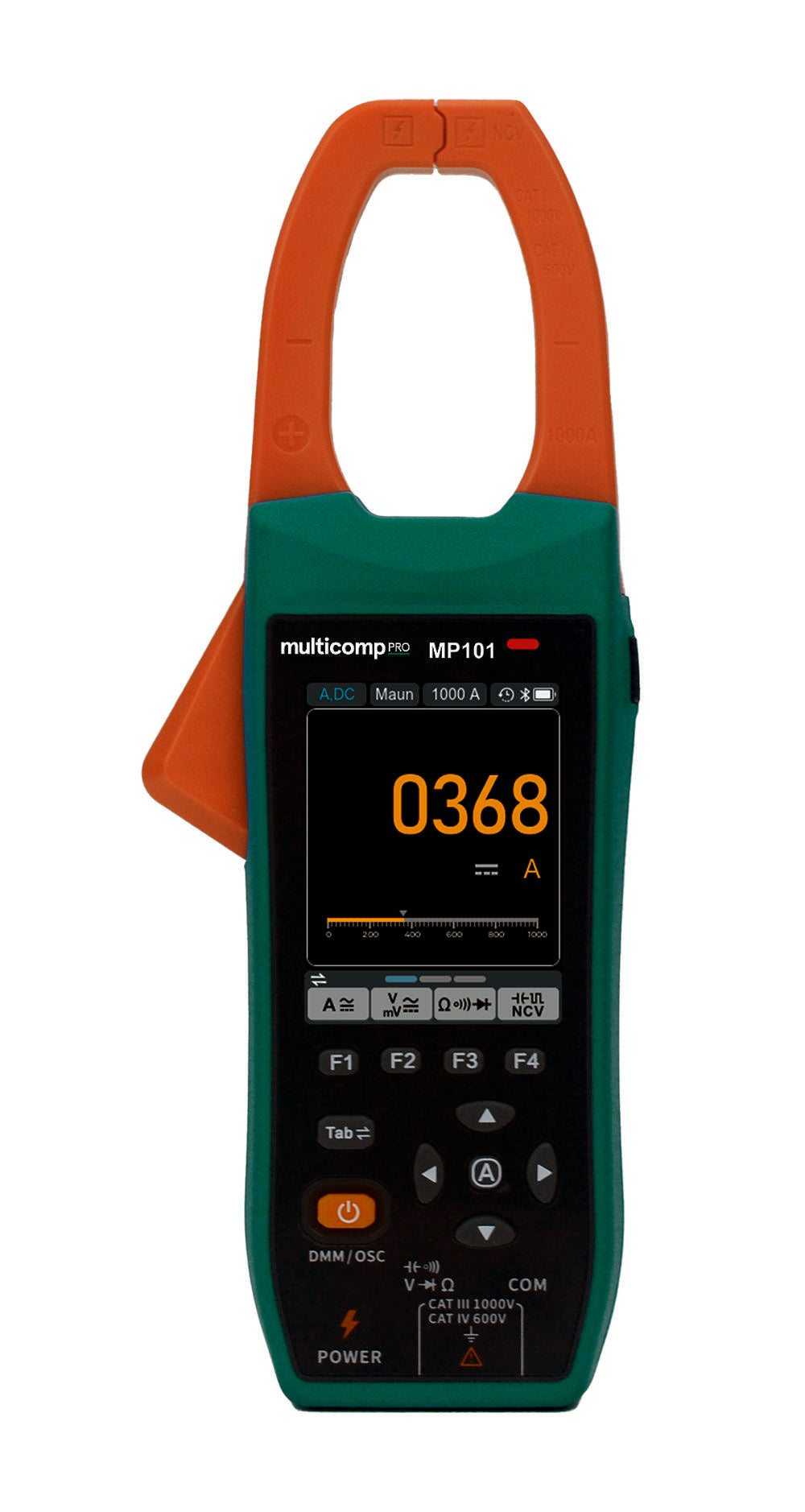

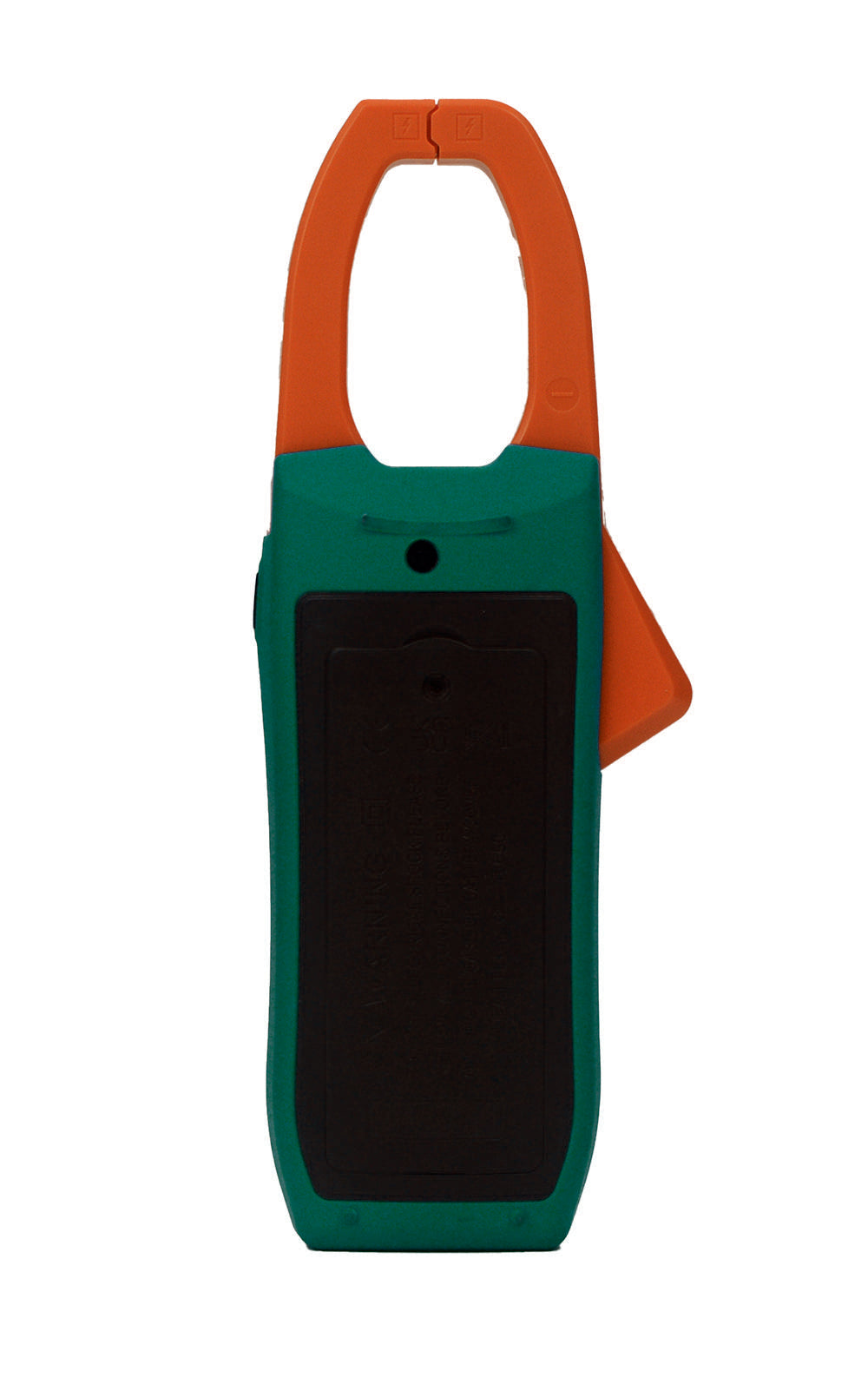

The MP101 delivers the functionality of a precision clamp meter and a 1MHz oscilloscope in one versatile instrument. Measuring AC/DC current up to 1000A, voltages up to 1000V, resistance to 100MΩ, capacitance to 20mF, and frequency to 20MHz, it’s designed for high-power applications and advanced diagnostics. With 20,000 counts, diode test, and continuity check, the MP101 provides professional accuracy and convenience for electricians, engineers, and technicians.
- Clamp meter with integrated 1MHz oscilloscope for multifunctional testing
- 20,000 counts display for high-precision readings
- DC Voltage: 20.000mV to 1000.0V
- AC Voltage: 200.000mV to 1000.0V
- DC Current: 20.00A to 1000A
- AC Current: 20A to 1000A
- Resistance: up to 100.00MΩ
- Capacitance: up to 20.00mF
- Frequency: up to 20.000MHz
- Additional functions: diode test and continuity check
- Clamp design for safe, non-intrusive current measurement
- Combines a clamp meter and oscilloscope into one compact device, saving cost and space
- Measures high currents up to 1000A safely without breaking the circuit
- High-resolution display ensures accurate diagnostics in demanding applications
- Covers a broad range of tests, from power systems to detailed electronic analysis
- Ideal for electricians, field engineers, and service technicians working with high-power systems
- Built-in continuity and diode check simplifies everyday troubleshooting
- Portable and durable, making it suitable for both on-site and workshop use
Applications
Test & Measurement, Electrical and Electronics, Embedded Design & Development, Research & Development, Electronics Service
Product details
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Diode, Duty Cycle, Frequency, Resistance |
| Voltage Measure AC Max | 1kV |
| Resistance Measure Max | 100Mohm |
| Range Selection | Auto, Manual |
| Jaw Opening Max | 38mm |
| SVHC | No SVHC (25-Jun-2025) |
| Current Measure AC Max | 1kA |
| Voltage Measure DC Max | 1kV |
| DMM Response Type | True RMS |
| No. of Digits | 4.5 |
| Product Range | Multicomp Pro Multifunction Meters With Oscilloscope |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP101 |
| Quantity | Each |
| Quick Start Guide (1.03MB) EN | View or download |
| Technical Data Sheet (332.27KB) EN | View or download |
| User Manual (2.47MB) EN | View or download |
