Product Overview

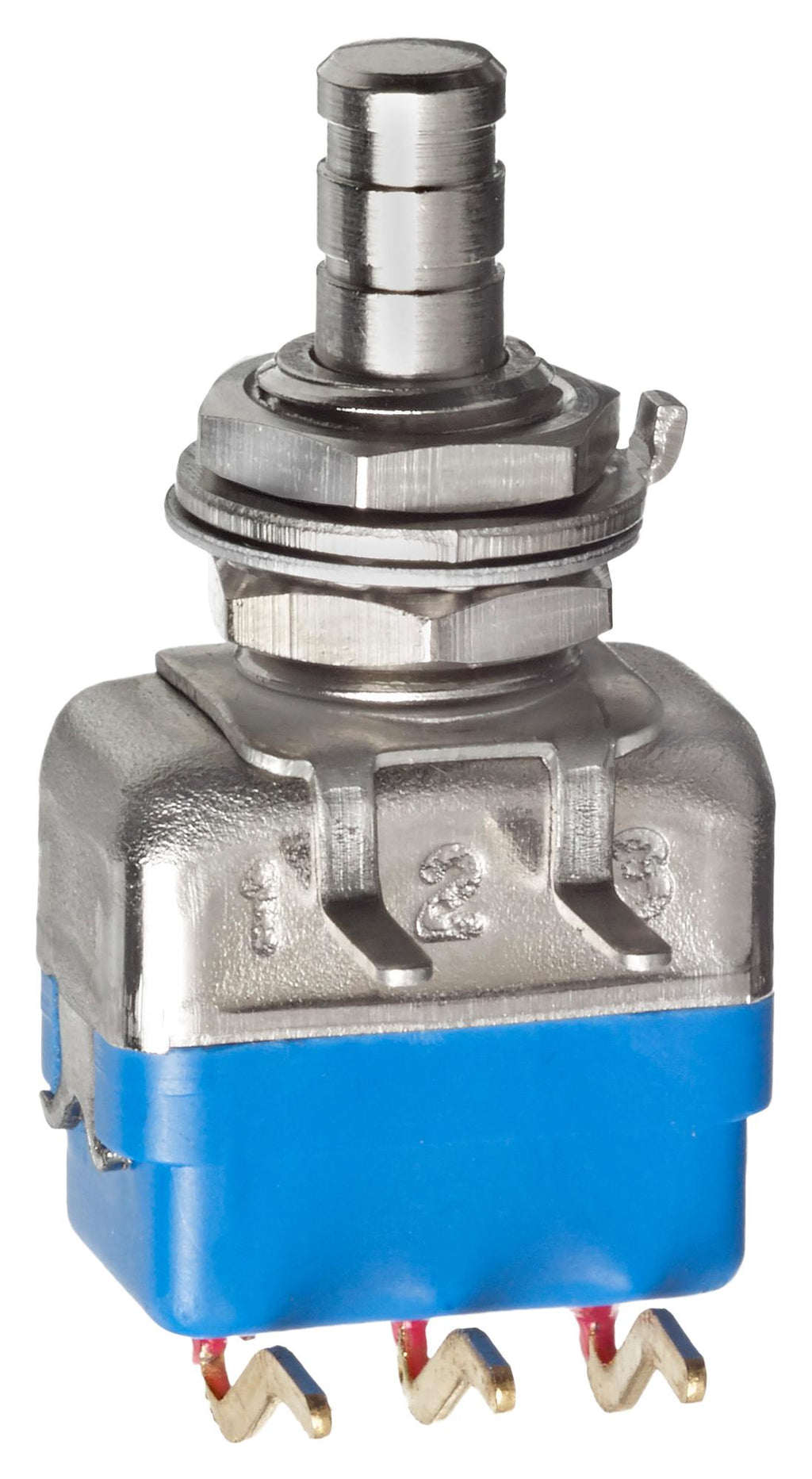

13435WAD2 is a 13000 series professional quick-break momentary pushbutton switch.
- Initial contact resistance is 10mohm maximum
- Insulation resistance is 1,000Mohm min at 500V DC
- Contact bounce is 2ms maximum
- Torque is 1.25Nm (0.922Ft.lb) maximum applied to nut
- Standard panel thickness is 2mm (0.078") maximum
- Operating temperature range from -40°C to +85°C
- Diallylphthalate (DAP) case, brass, nickel-plated housing
- Silver, gold-plated (2 micron gold) contact material
- 4A, 30V DC maximum current/voltage rating with resistive load
- Total travel is 2mm (0.078")
Product details
| Product Range |
13000 Series |
| Contact Configuration |
SPDT |
| Pushbutton Actuator Style |
Plunger for Cap |
| Contact Current AC Max |
- |
| Contact Current DC Max |
4A |
| IP Rating |
- |
| Switch Terminals |
PC Pin, Right Angle |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
6.5mm |
| Switch Operation |
On-(On) |
| Actuator / Cap Colour |
- |
| Contact Voltage VAC |
- |
| Contact Voltage VDC |
30V |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Non Illuminated |
| SVHC |
No SVHC (21-Jan-2025) |
Other details
| Brand |
APEM |
| Part Number |
13435WAD2 |
| Quantity |
Each |
| Technical Data Sheet (2.22MB) EN |
View or download |
