Description
Product Overview

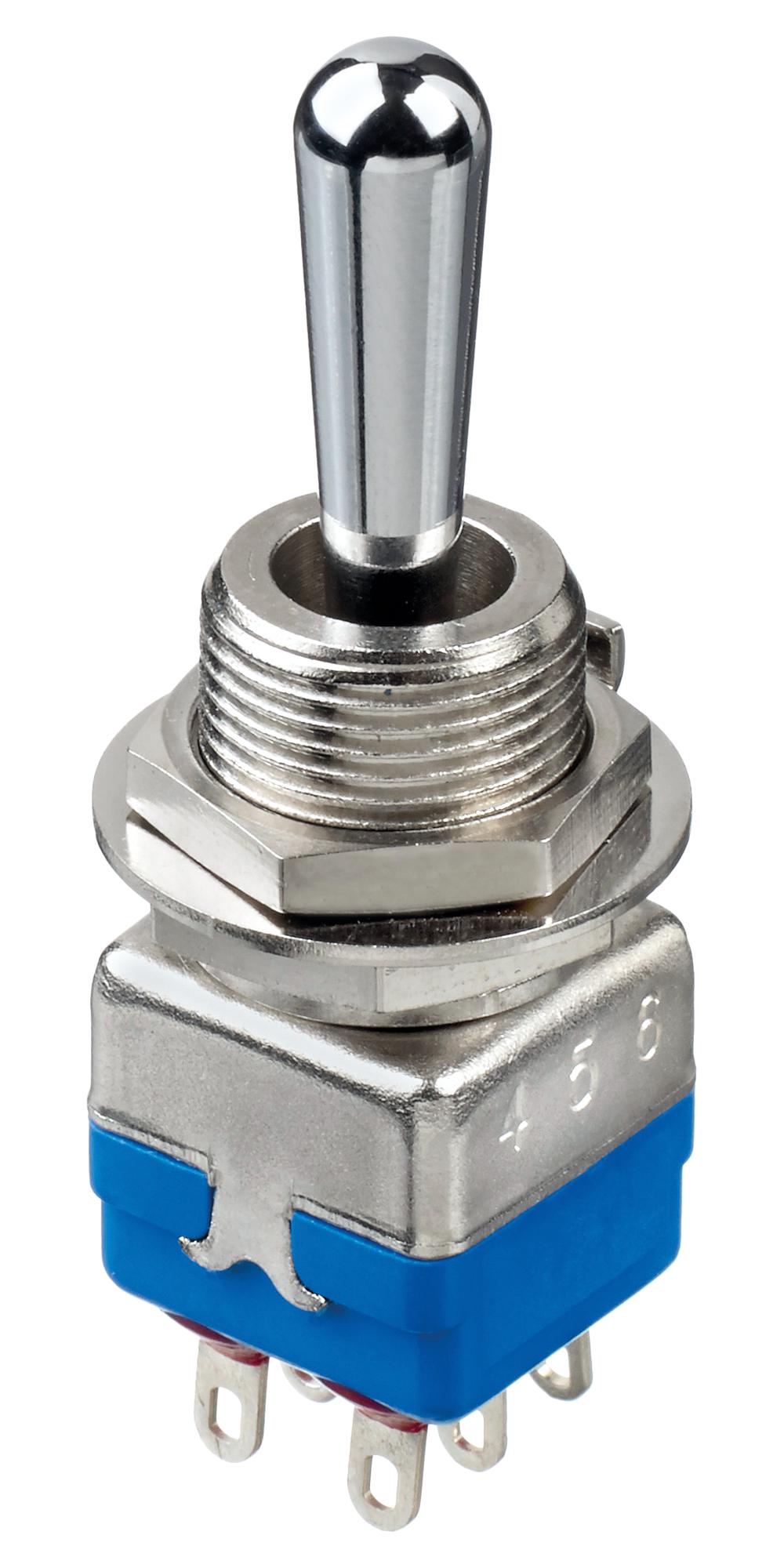

12144-2RAD2K is a 12000 series professional toggle switch. This robust switch is for high specification environments. The toggle action on 2-position models for a smooth mechanical operation.
- Solder lug terminals
- Double pole configuration
- MOM-ON-MOM electrical function
- Silver, gold plated (2 micron gold) contact material
- Bright chrome finish on actuator
- Front panel sealing by one O-ring and sealing washer
- Standard lever
- 4A, 30V DC max current/voltage rating with resistive load
- 1000Mohm min insulation resistance at 500V DC
- Dielectric strength:1000/2000V rms 50Hz min between terminals/poles and between terminals and frame
Notes
Meeting the requirements of MIL standard (MIL 3950).
Product details
| Switch Operation | (On)-On-(On) |
| Illumination | Non Illuminated |
| Switch Mounting | Panel Mount |
| Contact Voltage AC Nom | - |
| Contact Voltage DC Nom | 30V |
| Contact Configuration | DP3T |
| Product Range | 12000 Series |
| Contact Current Max | 4A |
| Switch Terminals | Solder Lug |
| SVHC | No SVHC (21-Jan-2025) |
Other details
| Brand | APEM |
| Part Number | 12144-2RAD2K |
| Quantity | Each |
| Technical Data Sheet (2.44MB) EN | View or download |
