Description
Product Overview

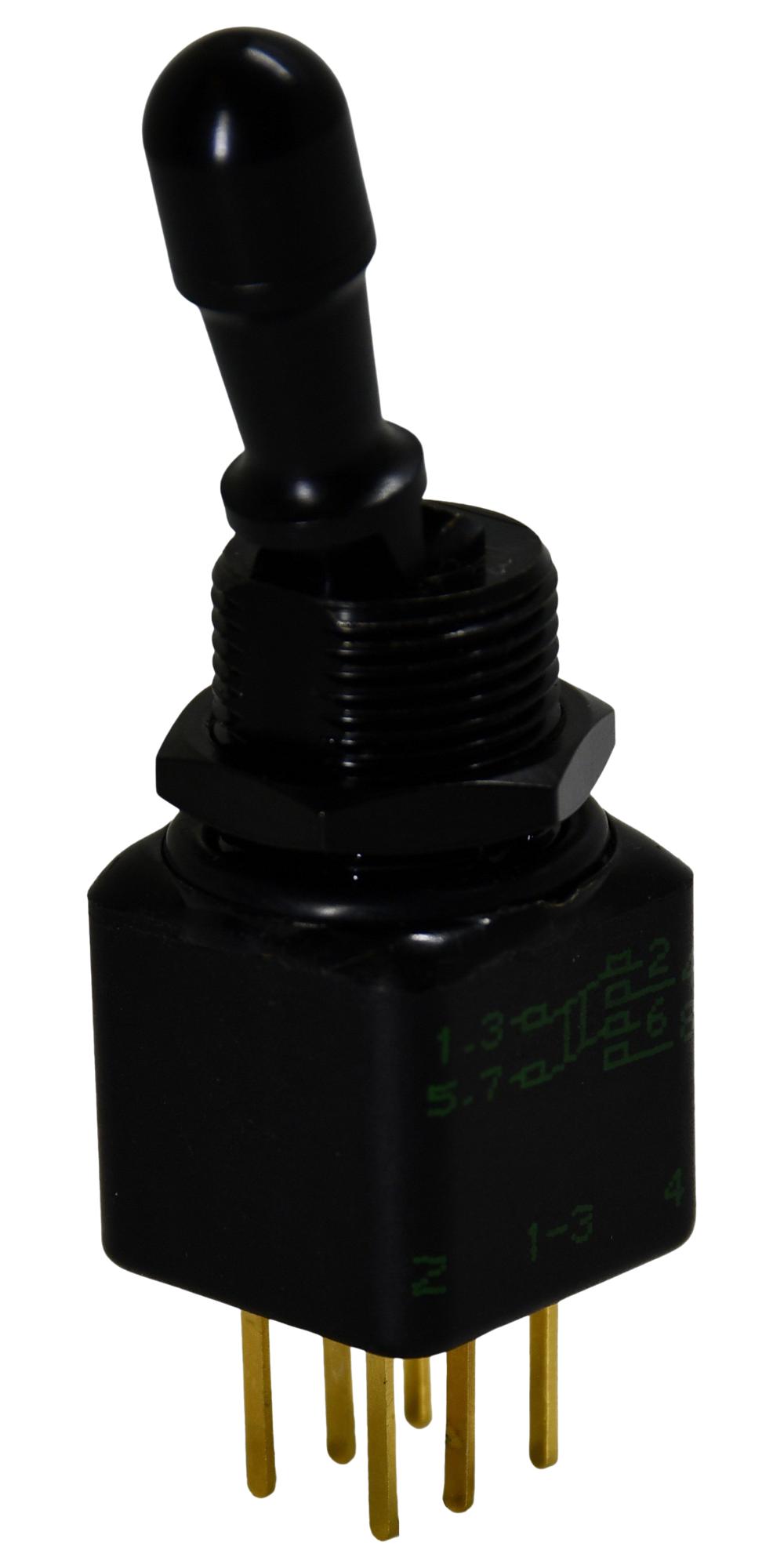

12246-2VX778 is a 12000X778 series high-performance, fully sealed toggle switch with threaded bushing Ø 11.9mm (15/32").
- Highly reliable contacts, pinned lever, compact size
- Double shell case for high mechanical strength and high electrical insulation
- Double pole, straight PC terminals
- Maximum current/voltage rating with resistive load is 4A, 28V DC
- Initial contact resistance is 10mohm maximum
- Insulation resistance is 1,000Mohm min at 500V DC
- IP67 according to IEC 60529 front panel sealing
- Operating temperature range from -40°C to +85°C
- Diallylphthalate (DAP) with plastic external shell (epoxy sealed) case material
- Torque is 1.50Nm (1.10Ft.lb) max applied to nut
Notes
Meeting the requirements of MIL standard (MIL 3950).
Product details
| Switch Operation | On-On |
| Illumination | Non Illuminated |
| Switch Mounting | Through Hole |
| Contact Voltage AC Nom | - |
| Contact Voltage DC Nom | 28V |
| Contact Configuration | DPDT |
| Product Range | 12000X778 Series |
| Contact Current Max | 4A |
| Switch Terminals | PC Pin |
| SVHC | No SVHC (21-Jan-2025) |
Other details
| Brand | APEM |
| Part Number | 12246-2VX778 |
| Quantity | Each |
| Technical Data Sheet (1.48MB) EN | View or download |
