Product Overview

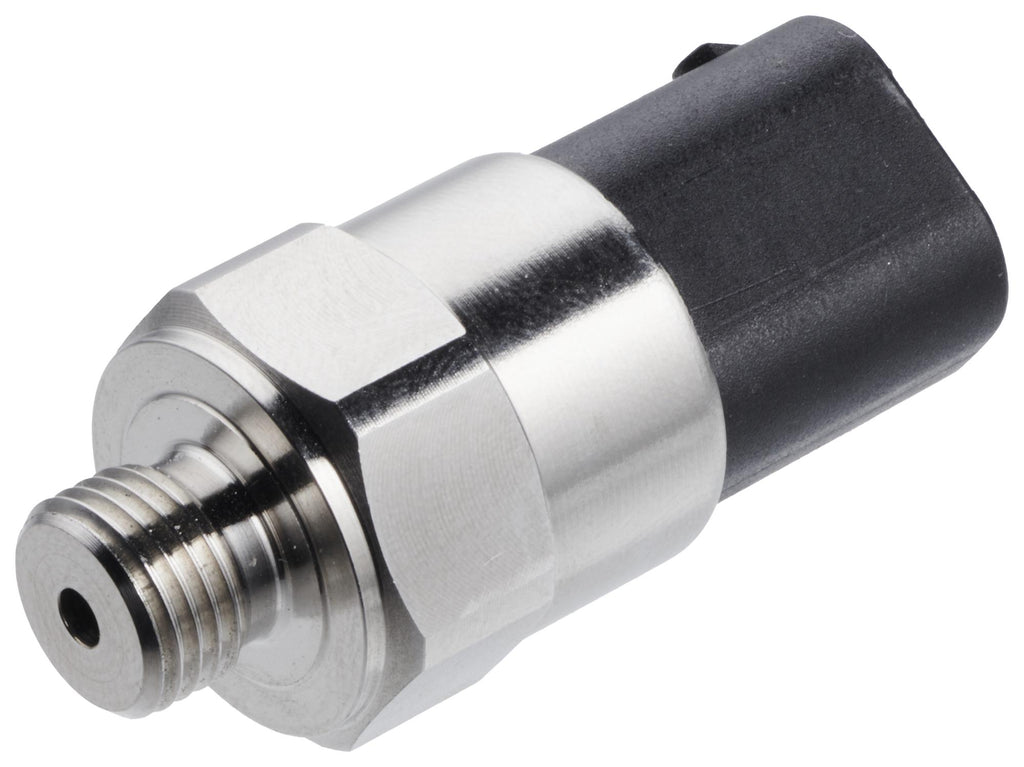

803153 is a VSP pressure sensor for oil-pressure applications. A robust and submersible design, which makes it a reliable solution for any oil-pressure application in motor vehicles and commercial vehicles. Its specially developed evaluation electronics permit highly accurate and stable measurements at temperatures up to 150°C, even under harsh conditions. In addition, the VSP meets the high EMC and ESD requirements that apply in the automotive industry.
- Operating pressure range from 0bar to 25bar
- Relative pressure
- Supply voltage of 5V
- Current consumption is less than or equal to 16mA (typ. 8mA)
- Compatible with standard automotive oils
- Suitable for applications where space is critical
Product details
| Pressure Type |
Relative |
| Operating Pressure Min |
0bar |
| Pressure Port Size |
M10 x 1 |
| Supply Voltage Min |
4.75V |
| Media Type |
- |
| Sensor Output Type |
Ratiometric |
| Operating Temperature Min |
-40°C |
| Product Range |
VSP Series |
| Pressure Port Type |
Male Threaded |
| Operating Pressure Max |
25bar |
| Transducer Connection / Termination |
3 Pin Connector |
| Supply Voltage Max |
5.25V |
| Output Interface |
- |
| Housing Material |
- |
| Operating Temperature Max |
140°C |
Other details
| Brand |
I2S AN AMPHENOL COMPANY |
| Part Number |
803153 |
| Quantity |
Each |
| Manufacturer Catalogue (136.15KB) EN |
View or download |
| Technical Data Sheet (93.34KB) EN |
View or download |
