Product Overview

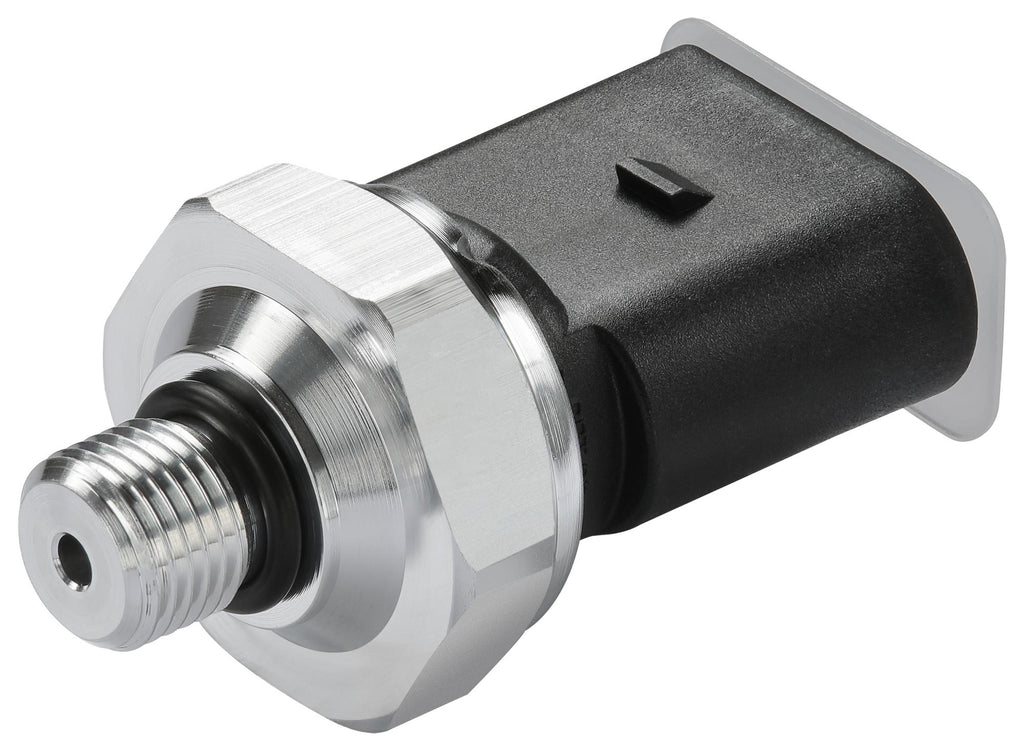

803252 is a CCT pressure/ temperature sensor for air-conditioning systems with heat pumps. The CCT pressure temperature sensor is often used in heat pumps for climate control systems and in thermal management (battery), particularly in vehicles with alternative drives. The specially developed thermo receptors permit a fast response time in flowing media and guarantee the high accuracy of the temperature measuring's. The design excels due to its compact size and minimal weight, which makes it easy to integrate and ideal for lightweight systems. The specific evaluation electronics make the pressure and temperature signal available via a digital single wire interface (LIN) and auto addressing.
- Operating pressure range from 0bar to 35bar
- Relative pressure
- Supply voltage of 5V
- Current consumption maximum is 10mA
- Excellent long-term stability
- Support for lightweight-construction concepts
Product details
| Pressure Type |
Relative |
| Operating Pressure Min |
0bar |
| Pressure Port Size |
M10 x 1 |
| Supply Voltage Min |
4.5V |
| Media Type |
- |
| Sensor Output Type |
Ratiometric |
| Operating Temperature Min |
-40°C |
| Product Range |
CCT Series |
| Pressure Port Type |
Male Threaded |
| Operating Pressure Max |
35bar |
| Transducer Connection / Termination |
3 Pin Connector |
| Supply Voltage Max |
5.5V |
| Output Interface |
- |
| Housing Material |
- |
| Operating Temperature Max |
125°C |
Other details
| Brand |
I2S AN AMPHENOL COMPANY |
| Part Number |
803252 |
| Quantity |
Each |
| Manufacturer Catalogue (278.13KB) EN |
View or download |
| Technical Data Sheet (138.00B) EN |
View or download |
