Product Overview

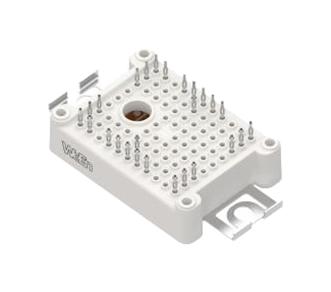

WEEN SEMICONDUCTORS WMSC016H12B1P6T Silicon Carbide MOSFET, Half Bridge, N Channel, 85 A, 1.2 kV, 0.02 ohm, WeEnPACK-B1
Product details
| MOSFET Module Configuration |
Half Bridge |
| Continuous Drain Current Id |
85A |
| Drain Source On State Resistance |
0.02ohm |
| No. of Pins |
18Pins |
| Gate Source Threshold Voltage Max |
3.5V |
| Operating Temperature Max |
150°C |
| SVHC |
No SVHC (21-Jan-2025) |
| Channel Type |
N Channel |
| Drain Source Voltage Vds |
1.2kV |
| Transistor Case Style |
WeEnPACK-B1 |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
146W |
| Product Range |
- |
Other details
| Brand |
WEEN SEMICONDUCTORS |
| Part Number |
WMSC016H12B1P6T |
| Quantity |
Each |
| Technical Data Sheet (1006.48KB) EN |
View or download |
